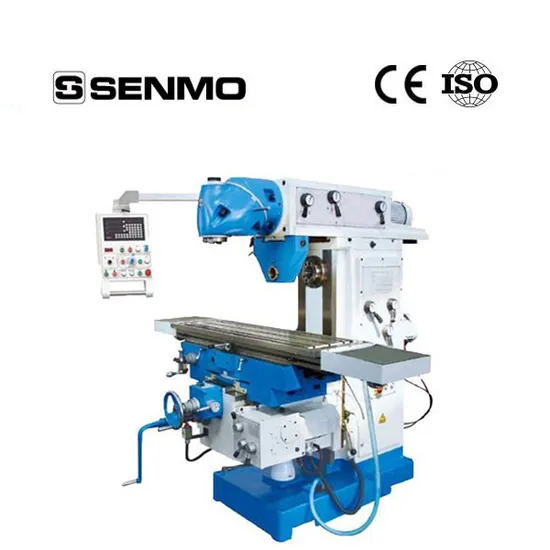

Universal Milling Machine X6436 High-Quality Universal Swivel Head Rotary Head Milling Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

X6436

Type

Worktable Milling Machine

Structure

Rocker

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Certification

Condition

New

Table Size

1320X360 mm

Z-Axis Travel

400mm

RAM Travel

500mm

Transport Package

Full Closed Plywood Box

Trademark

SENMO

Origin

China

HS Code

84596990

Product Description

Universal Milling Machine X6436

Specifications	X6436
Table size	1320x360 mm
X-axis travel (manul)	1000mm
Y-axis travel (manul)	300mm
Z-axis travel	400mm
Distance vertical spindle to table surface	200-650mm
Distance vertical spindle to column surface	175-590mm
Ram travel	500mm
Spindle taper	ISO50(V) / ISO50(H)
Spindle speed range (Vertical)	60-1750rpm (12 steps)
Spindle speed range (Horizontal)	58-1800rpm (12 steps)
T-slot size	14mm/95mm/3
Feeding rate (X/Y)	22-420mm/min
Feeding rate (Z)	8-267mm/min
Rotation range of spindle	±35º
Table swivel angle	±35º
Main Motor power	4KW (V/H)
N.W/G.W	2200/2480kg

Standard Accessories	Optional Accessories
Machine Work lamp	Digital readout system
Coolant system	Big table 1600mm
CE electrical cabinet	Spindle protect guard
Pendent control station	Slotting head
Drill chuck	Deluxe pendent control station
Drawbar	Dividing head device
Chip tray	Rotary table
Manual lubrication oil pump	Clamping kit
Swivel worktable	Vice

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
