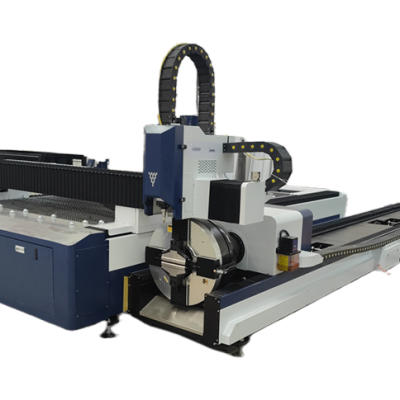

HBN 3015F Single-Platform Pipe & Sheet Integrated Laser Cutting Machine
Dual-Function Cutting Solution for Comprehensive Metal Fabrication
Product Overview
The HBN 3015F represents a breakthrough in multifunctional laser cutting technology, combining sheet metal and pipe cutting capabilities in one compact platform. This innovative system delivers precision cutting for both flat materials and tubular components, eliminating the need for separate machines in small to medium fabrication shops.
Key Features & Benefits
Dual-Function Design
3000×1500mm sheet cutting area
6000mm length capacity for pipes (Ø10-280mm)
Seamless switching between cutting modes
High-Performance Cutting
3000W fiber laser source (IPG or Raycus options)
90m/min rapid traverse speed
±0.05mm positioning accuracy
Industrial-Grade Construction
Welded steel frame for maximum stability
Dual-drive rack transmission system
IP54 protection standard
Technical Specifications
ParameterSpecification
| Sheet Cutting Area | 3000×1500mm |
| Pipe Cutting Capacity | Ø10-280mm × 6000mm length |
| Laser Power | 3000W fiber laser |
| Positioning Accuracy | ±0.05mm |
| Repeat Accuracy | ±0.05mm |
| Max Speed | 90m/min |
| Acceleration | 0.8G |
| Voltage Requirement | 380V/50Hz |
| Operating Temperature | 0-40°C |
| File Compatibility | PLT, DXF, DWG, AI |
Material Compatibility
Sheets: Stainless steel (0.5-12mm), carbon steel (0.5-16mm), aluminum (0.5-10mm)
Pipes: Round, square & rectangular tubes in steel, stainless, aluminum
Standard Configuration Includes
Integrated CNC control system
Automatic focusing cutting head
Basic pipe clamping system
Air cutting capability
19" industrial control panel
Optional Upgrades
Automation: Material loading conveyor (+$18,500)
Cutting Gases: Oxygen/Nitrogen generator system
Software: Advanced nesting software package
Safety: Full enclosure with laser protection
Industry Applications
✔ Metal furniture manufacturing
✔ Architectural metalwork
✔ Automotive parts fabrication
✔ Industrial equipment components
✔ HVAC ducting systems
>>
