2021 Tooth Side Circular Sawblade Grinding Machine for Tct Saw Blade Sharpening

Product Description

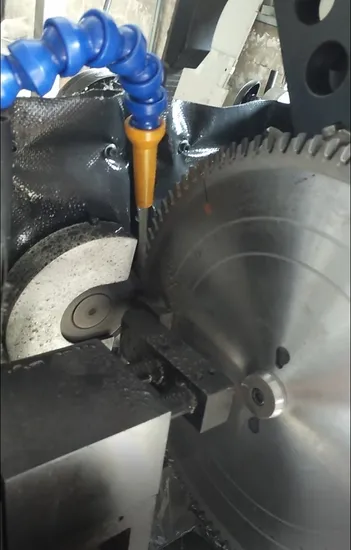

CNC Circular Saw Blade Tooth Side Grinding Machine for TCT Cold Saws Sharpening
High-level productivity & precision grinding machine for circular saws.
• Saw Dia: <800mm
• Function: Tooth Side angle sharpening
• Precision: <0.01mm
• Model: NS 800
• High precision, more function & more productivity, PURCHASE is cost-effective.
Cooperation Companys

Advantages of sawblade grinding machine • More precision- grinding precision: <0.01mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

3-D Graphics Grinding Machine
Technical Premeter

Saw Diameter	120~810mm
Plate Thickness	0.5~8mm
Side Relief	-5°~ 5°
Side Angle	-5°~ 5°
Hook Angle	-5°~28°
Bore Diameter	12~120mm
Pitch	2~65mm
Teeth Length	1~15mm
Wheel Size	150-200mm*32mm
Wheel Speed	2500~3500RPM
Grinding Speed	4~20s /tip
Power	4.5KW
Dimension	2100*1680*1900mm
Weight	2200kg

Configuration

Ball Screw	IF(Germany)
Crossed Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL circular sawblade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?

---
