Hot Sale Automatic Tool Changer Woodworking CNC Router Machine Cutting MDF Aluminum

Product Description

Product Description

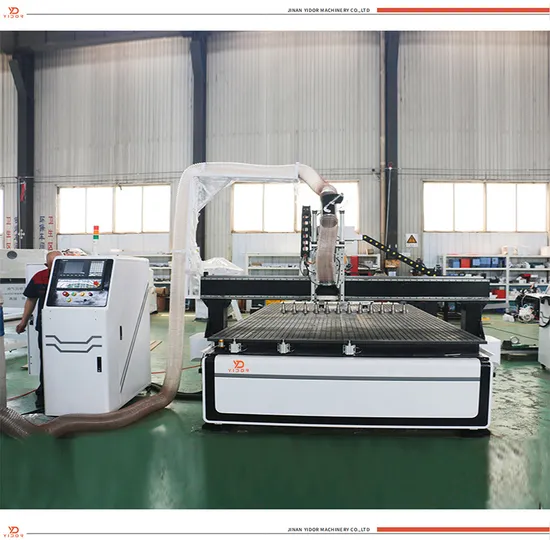

ATC cnc router with circular auto tool changer 12 tools, can choose 10 tools, 8 tools, 6 tools etc.
Well-known 9.0KW ATC spindle, strong cutting ability, low noise, long working time. Other configuration including Taiwan LNC control system, Japan yaskawa servo motor, Taiwan Detal inverter, HIWIN guide rail, Helical rack etc.Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.Advantage:
#Every machine will be tested for 10hs before delivery,all of them are qualified absolutely.
#Every machine was inspected for about 10 steps before delivery ,which can keep machine high accuracy,strong capacity,longer lifttime and enough stability.
Detailed Photos
Product Parameters

Model	YD-1325T/YD-1530T/YD-2030TATC
X YZ route or distance of travel	1300*2500*200mm/1500*3000*200mm/2000*3000*200mm
Voltage	220V/380V,3PH
Max empty travel speed	XY.50000mm/min Z:20000mm/min
Working Speed	15000-30000mm/min
Countertop structure size	Vacuum Adsorption Countertop:1960*3980 24holes
Bed structure	Heavy Bed Structure
Transmission	Guide ;25 Square rail
	Rack: High precision 1.5M Helical gear
	Reducer: Japan Shinpo
	Screw: Taiwan TBI
Knife Library	Straight line 12 follow knife library
Inverter	Tetran 11KW
Spindle	JST 9KW Air cooling
Motor	Leadshine servo motor
Run command	G-code
Operating system	MW2500D
Total weight	2.5T
Plate fixing	7.5KW water pump
Dust collection	5.5KW
Delivery time	Within 15days after getting the payment

Other hot sale models

Company Profile
Packaging & Shipping
FAQ
24 hour online service
* Inquiry and consulting support.
* Sample testing support.
*We offer free training in our factory, welcome to visit and learn more about our machines.
*Multi-language support
2 years Warranty
* We have the high quality machine
* We provide 2 years warranty, leading the whole industry
* Our agent help us to make a perfect after-sales service system

raining and maintenance
Engineers available to service machinery overseas.
3 day lightning shipment
Localized service with new machine production for 10 days

---
