Woodworking Machinery Wood Pallet Grooving Machine Slotting Equipment

Product Description

Product Parameters

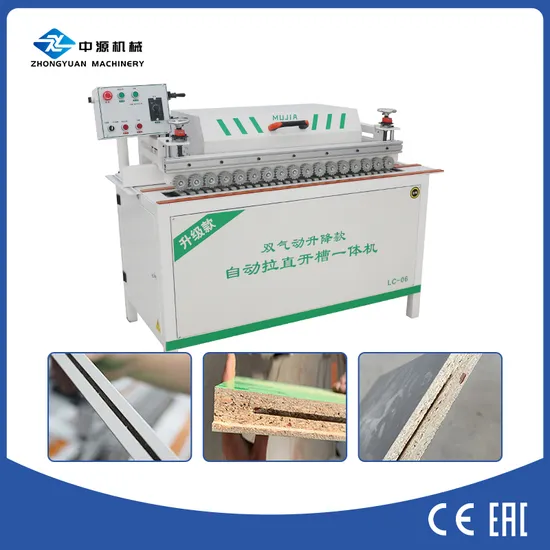

LC-06 automatic straightening and slotting machine
Dual pneumatic lifting model.Quick knife adjustment, safety protection, efficient dust collection.
Function: The door panel can choose the milling slot/milling position (middle, top, bottom) at will, and can also choose full opening or half opening, with a reserved size of 100CM on both sides-full slot.Milling and slotting of the mother-and-child handle, slotting of the straightener, side slots (opening slots, not opening slots).
Features: dual pneumatic adjustment, inverter control, the straightener spindle uses Wang Jiannan's 18,000-rpm high-speed spindle, with stable performance.
5 slotting methods: Side slot opening: slotting depth 0-2cm. Straightener slot: drilling diameter: .27cm. Handle opening: milling edge slotting is completed in one go. Side slotting without opening a slot. Handle opening without opening a slot.
Details:
1.Variable frequency speed regulation for smooth feeding without shaking.
2.Optional pre-cutting function:Prevents edge collapse and extends the service life of the straightening knife.
3.Control panel:Independent control buttons, clear display, intuitive and convenient, strong overall control.
4.Digital display adjustment handwheel:The handwheel can be adjusted according to the thickness of the plate, suitable for a variety of plate specifications and materials.
5.Side slotting motor:The use of high-power motor can realize the opening and closing of the side slot.
6.Pressure beam device:There is an all-aluminum pressure beam device and CNC adjustment function in front of the machine.
7.The double-row silicone pressure wheel automatically feeds the plate and firmly presses the plate to prevent the plate from shifting during slotting, causing erroneous operation, No imitation board, no deviation.
8.Extended ruler:adjustment handle reference ruler, precise scale, one-time molding.
9.Upgraded milling cutter, clamp the milling cutter with the slotting machine, and slot it in a straight line.Spindle motor Special cutter head, milling without edge collapse, no burrs.
10.Dual pneumatic adjustment, flexible tool change, switch to different working modes, convenient and flexible.

Voltage	380V three fires and one zero	Spindle motor speed	18000r/min
Frequency	300-400HZ	Slotting motor power	4KW
Total power	7.8KW	Slotting motor speed	2800r/min
Plate thickness	1.8-5cm	Drilling diameter	φ1.27CM
High-speed spindle motor power	3.5KW	Slotting depth	0-2cm

Detailed Photos
Product Application
Company Profile
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
