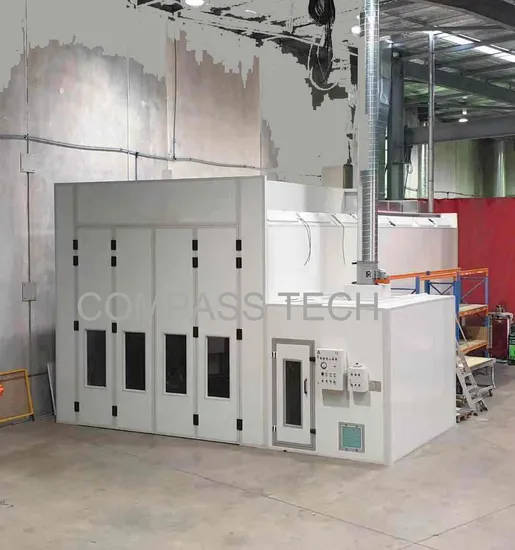

CP-15-5 Two Sides Exhausted Bus paint booth product details:
| Outside Dimension (mm) | 11125×6900×5600 | Inside Dimension(mm) | 11000×5000×5000 |
| Front Door(mm) | 4000×4600(W*H) | Service door(mm) | 800×2000 |
| Total Power | 25kw |
| Cabin system | Front door | 4 folded sheet metal formed door |
| Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.476mm(rockwool panel for option) |
| Ceiling panel | Galvanized steel sheet |
| Basement | Cement floor prepare by customer |
| Door glass | 5mm tempered glass |
| Air make-up system | Air ventilation system quantity | one units |
| Air inlet fan system | 1 set 11KW direct drive turbo fan |
| Exhausted fan system | `1 set 11KW direct drive turbo fan |
| Air inlet capacity | 35000m3/h |
| Exhuasted capacity | 35000m3/h |
| Exhausted ducting | Four meters straight ducting and one 135 degrees elbow for each exhausted system |
| Purification system | Pre-filter | G3 grade |
| Ceiling filter | 600G filter EU5 / F5 |
| Floor filter | Fiberglass filter |
| Exhausted filter | Filber glass and carbon filter |
| Heating system | Heat Exchanger | SUS304 232KW stainless heating exchanger |
| Heating burner | one sets Riello RG5S diesel oil burner(gas burner for option) |
| Heating productivity | 260000Kcal/hour |
| Spray to baking switch | Pneumatic damper |
| Chimney ducting | 4m straight chimney and one chimney hood for each air make-up system |
| heating temperature | Maximum 80ºC |
| fuel consumption | 8-12L/vehicle |
| Lighting system | Ceiling lighting | 8Units, each 4 *16.5W LED lamps. |
| Side lighting | 8Units, each 4 * 16.5W LED lamps. |
| Illumination | 1200LUX |
| Control system | Switch controlling | Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
