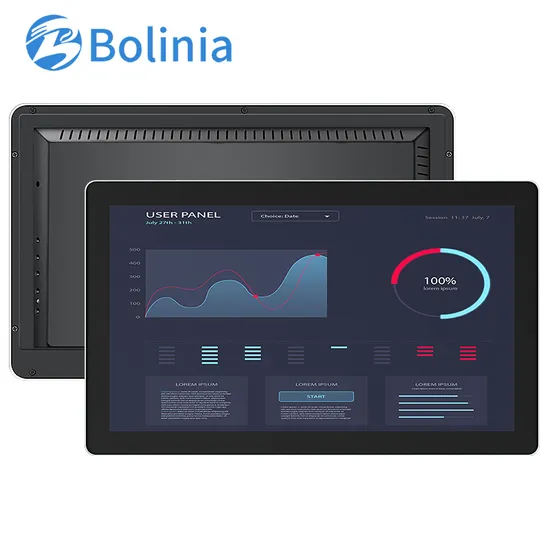

23.6 / 24 Inch Industrial Capacitive Touch Screen Panel PC Computer with IP65 Waterproof Fanless Aluminum Case HDMI

US$260.00
1-49 Sets
US$250.00
50-299 Sets
US$240.00
300+ Sets

Basic Info.

Model NO.
B236-RT
Connectivity
HDMI
Protection Rating
IP65
Screen Size
23.6′′
Touch Technology
Capacitive Touch
Backlight
LED
Contrast
1000:1
Viewing Angle (H/V)
178/178
Operating Temperature
0~50ºC
Power Requirement
DC 12V
Certificates
CE/FCC/RoHS
Control
OSD Control
Type
PLC
Touch Screen
Touch Screen
CPU Type
Core Duo
CPU Card Size
Full-size Card
Installation
Stand Base/Vesa Mount
Accessories
Stand/ Vesa Mount Kit, Warranty Card, VGA/HDMI Cab
Transport Package
Single Item, Standard Packing
Specification
576*355*49.5 mm 7 kg
Trademark
Bolinia
Origin
China
HS Code
8528591090
Production Capacity
100000/Piece

Packaging & Delivery

Package Size
69.00cm * 49.00cm * 16.00cm
Package Gross Weight
9.200kg

Product Description

Datasheet
Size 23.6"
Touch Panel G+G
Panel Type IPS
Backlight LED
Backlight Life 50,000 hrs
Resolution 1920*1080
Acpect Ratio 16:9
Contrast 1000:1
Brightness 250 nits
Viewing Angle (H/V) 178/178
Response Time 14 ms
Display Color 262K
Operating Temperature 0~50ºC
Storage Temperature -20~60ºC
Video Inputs/Outputs VGA+DVI+HDMI+USB+Audio+DC+USB for touch
Audio Inputs/Outputs N/A
Touch Projected Capacitive
Touch control Industrial EETI touch
Installation VESA mount
Power Requirement DC 12V
Systems Supported Windows XP/7/8/10, Android and Linux
Max Touch Points 10
Dimension (W*H*D) 576*355*49.5mm
Weight 7 kg
Certificates CE/FCC/ROHS/CCC
Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, USB touch cable, power adapter, warranty card and manual.
