Canned Beef and Mutton Pure Milk Beverage Handling Cage System

Product Description

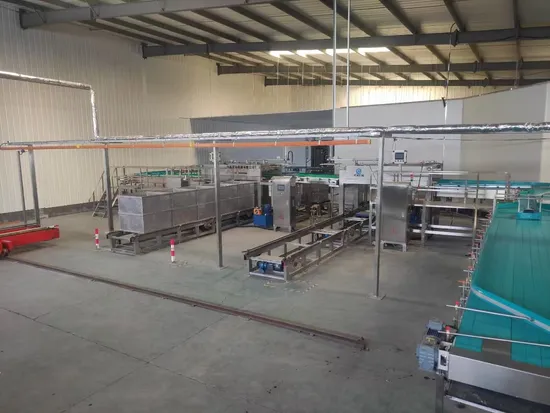

The automatic loading and unloading Baskets Machine is mainly used for the automatic loading and unloading of various pop cans, tinplate can beverages, various canned meat, vegetable cans, and secondary sterilized plastic bottle beverages before sterilization, and unloading after sterilization

Model	LW-PLM4	LW-PUM4	LW-PLC4	LW-PUC4
Suction method	magnetic loading	magnetic unloading	clamping loading	clamping loading
Capacity	2-4layers/min	2-4layers/min	2-4layers/min	2-4layers/min
Size	7500*1450*1700mm	6500*1450*1700mm	5100*1500*1400mm	4500*1500*1400mm
Electricity consumption	3P 380V 2.25KW	3P 380V 1.5kW	3P 380V 2.25kW	3P 380V 1.5KW
Air consumption	380L/min 6kg/cm2	380L/min 6kg/cm2	380L/min 6kg/cm2	380L/min 6kg/cm2

The automatic loading and unloading cage machine is divided into a cage loading system and an unloading cage systemThe cage loading system is to pass the filled products from the modular conveyor line through the automatic bottle unscrambling mechanism to realize automatic bottle unscrambling, arrangement, and bottle separation, and then transfer the arranged solid cans or PET bottles by holding bottles or magnetic suction. Loading mechanism, the solid cans that have been sorted are sent to the sterilization cage smoothly as a whole, and are automatically compacted, arranged closely, and then sent to the position of entering the cage, and continue to cycle the next layer of transportation until the whole cage canning is completed. When the cage is full, the cage loading operation will be automatically stopped. Then it is transported to the sterilizing pot through the trolley circulation track for sterilization.

---
