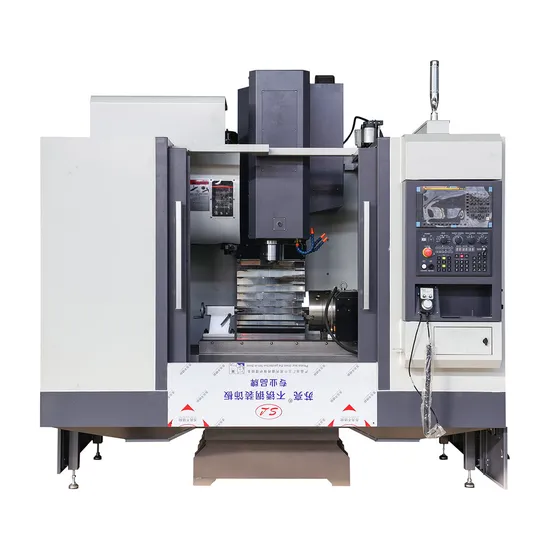

Precision Engineered Vmc 5 Axis CNC Machine for High Efficiency

Product Description

Product Description
VMC Series Vertical Machining Center Features:
1: Immerse yourself in unparalleled precision and robustness with our high-precision, high-rigidity spindle; engineered to perfection for exceptional accuracy.
2: Crafted with meticulous attention to detail, featuring 2-mm thick sheet metal and three taps for effective flushing, ensuring durability and seamless operations.
3: Experience the power and reliability of our servo motor drive, providing remarkable performance and control.
4: The belt-type spindle offers outstanding rigidity and reliability, making it the epitome of engineering excellence.
5: Our direct-connected spindle combines high-speed, high-efficiency, and high-precision performance with low noise and minimal vibration, setting new standards in machining technology.
6: Designed to meet and exceed all user requirements, delivering an exceptional machining experience.
VMC series CNC vertical machining center is powered by x, y, and Z axis servo control, offering a semi-closed loop system. Its design is compact and meticulously engineered, with dimensions that prioritize efficiency. The main spindle, driven by a servo motor, epitomizes the marriage of power and precision.

Specifications	VMC650	VMC850	VMC855	VMC1060	VMC1270
X axis	650mm	800mm	800mm	1000mm	1200mm
Y axis	400mm	500mm	550mm	600mm	700mm
Z axis	500mm	500mm	550mm	600mm	700mm
Spindle end face to workbench	100-600mm	150-650mm	150-650mm	100-700mm	130-830mm
Spindle center to column guide	476mm	571mm	571mm	667mm	767mm
X-axis fast moving	32(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Y axis fast moving	32(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Z axis fast moving	24(48)m/min	24(48)m/min	24(48)m/min	24m/min	24m/min
Cutting feed	1-10m/min	1-10m/min	1-10m/min	1-10m/min	1-10m/min
Recommended three-axis servomotor torque	10N.m	12N.m	12N.m	20 N.m	25 N.m
Workbench area	800×400mm	1000×500mm	1000×550mm	1200×600mm	1300×700mm
weight capacity	400Kg	500Kg	500Kg	600Kg	700Kg
Work surface height from the ground	900mm	900mm	900mm	1000mm	1000mm
T-slot	3×18×125mm	5×18×90mm	5×18×90mm	5×18×100mm	5×18×115mm
Rotating speed	8000 rpm	8000rpm	8000rpm	8000 rpm	8000 rpm
Spindle taper	BT40	BT40	BT40	BT40	BT40
Recommended main motor power	5.5KW	7.5KW	7.5KW	7.5KW	11KW
Positioning accuracy (JIS standard)	±0.005/300mm	0.005/300mm	0.005/300mm	±0.005/300mm	±0.005/300mm
Repeat positioning accuracy (JIS standard)	±0.003mm	±0.003mm	±0.003mm	±0.003mm	±0.003mm
Dimensions	2000× 1500×1950mm	2300×1850×1950mm	2300×1850×1950mm	2800× 2300×2500mm	3200×2400×2700mm

Detailed Photos
Renowned for precision and reliability, sourced from Taiwan. VOLIS Spindle
Spindle BT40 designed for 8000rpm with options extending to 10000rpm and 12000rpm for increased versatility.
Equipped with a servo motor drive and belt-type spindle, showcasing exceptional rigidity, reliability, speed, and precision.
Taiwan OKADA Tool Magazine
ATC (Auto Tools Change) system for seamless and efficient automatic tool exchange.
This robust tool magazine accommodates 24/30/40/60 tools, enabling the completion of multiple processes in one go to significantly boost production efficiency.
CNC Operating System
Choose among Fanuc, Siemens, Mitsubishi, Syntec, GSK, etc., with optional control systems that support multi-language displays.
Workbench
Precision-engineered with wear-resistant cast iron and audio-hardened guide rails for enduring performance. The three-axis system utilizes a linear slideway, enabling rapid displacement for enhanced productivity.
Machining Center Main Structure:
Constructed with high-quality castings that ensure stable organization and permanent quality assurance.
Finite element analysis and computer-simulated stress testing guarantee optimal rigidity, stability, and earthquake resistance; advanced control systems deliver superior quality, performance, and functionality for heightened productivity and comfort.
Featuring an ultra-wide base and box-type column structures, complemented by a widened and lengthened saddle, the robust design accommodates heavy-load capacity during processing.
Reinforced tendon and bone structures in the spindle head provide appropriate contact length ratio with the column, ensuring stable support and enhanced performance.
Utilizing high-quality accessories from renowned domestic and international suppliers to significantly enhance product quality.
Manual precision scraping and imported wear-resistant sheets on hard rail tracks secure lasting stability of sliding movements.
The electrical cabinet innovatively separates strong and weak currents, replacing traditional terminal strips with a high-power circuit board for a neat, visually appealing, and highly scalable setup. Related products

Packaging & Shipping
Each of our Precision Engineered VMC 5 Axis CNC Machines is meticulously assembled and rigorously debugged before we send it your way. This ensures that our machinery is in perfect working order when it arrives at your doorstep.We have partnered with reliable forwarders to offer you comprehensive shipping solutions, ensuring your machine arrives safely and on time. Enjoy the flexibility of choosing between ocean shipping and land transportation, tailored to meet your specific needs.
Upon receipt of your Precision Engineered VMC 5 Axis CNC Machine, please immediately unbox and inspect the equipment on-site. Should you encounter any damage or issues, do not hesitate to contact us promptly for assistance.
Company Profile
Henan Rowdai Machinery Equipment Co., LTD Nestled in the heart of Zhengzhou city, Henan Province, our esteemed company thrives as a beacon of excellence in the realm of machinery manufacturing. Our expertise illuminates through the creation of diverse CNC machine centers, versatile Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, Grinding Machines, and robust Band Saws. Our products are integral to the automotive, mold-making, construction machinery, aviation, high-speed railway, and energy industries. With a significant market share, our superior products have journeyed globally, reaching Europe, America, Australia, the Middle East, Southeast Asia, and Africa, among others.
Our team, enriched with over a decade of experience in machine tools, is committed to excellence. Our professional inspection team ensures precision by addressing customers' unique needs. We strive to deliver impeccable quality machines paired with unparalleled after-sales services. Here's our commitment to you:
1) Rigorous and exceptional quality control
2) Prices that set the bar for market competitiveness
3) Cutting-edge technology infused in every product
4) A dedicated team of professionals in lifestyle consumer electronics.
5) Seamless and effective communication channels
6) Comprehensive and efficient OEM & ODM services
Our Unmatched Service Offerings1. Unwavering technical support through online services.2. Comprehensive technical documentation and file services.3. Instructional machine operation videos provided.4. Extensive on-site training services available.5. Reliable spare parts replacement and repair services.6. All inquiries receive a response within an impressive 8-hour window.7. Explore product development tailored to your specifications with our expertise.

---
