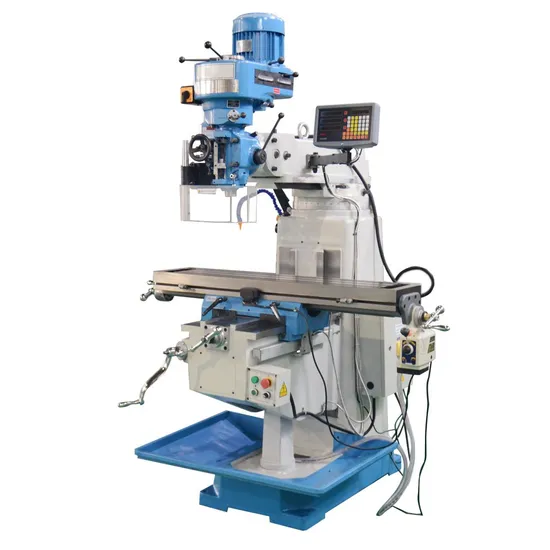

| | unit | X6232A |
| TABLE :- | | |
| Table size | mm | 1250X320 |
| T slot | no | 3 |
| Size ( Width ) | mm | 14 |
| Centre distance | mm | 70 |
| Max. load of Table | kg | 300 |
| swivel of table | degree | ― |
| machining range :- | | |
| table Longitudinal travel(manual/auto) | mm | 600 |
| table Cross travel (manual/auto) | mm | 300 |
| table Vertical travel(manual/auto) | mm | 400 |
| MAIN SPINDLE :- | | |
| Spindle taper | | ISO40 |
| spindle speed /step -- Vertical | rpm | 35-1600/11steps |
| --Horizontal | rpm | ― |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| swivel angle of swivel head | degree | 360º |
| vertical spindle axis to column surface | mm | 60-500 |
| vertical spindle nose to table surface | mm | 100-480 |
| horizontal spindle axis to table surface | mm | ― |
| horizontal spindle axis to arm bottom | mm | ― |
| arm travel | mm | 440 |
| POWER :- | | |
| main motor | kw | 2.2 |
