4D Jelly Candy Depositing Productioin Line Jelly Candy Making Machine

Product Description

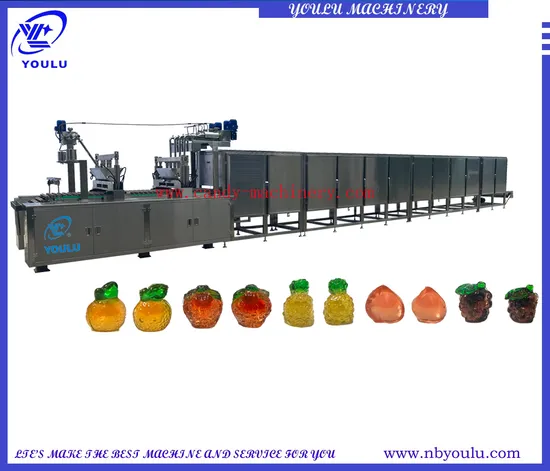

Full automatic jelly candy depositing production line with 2units servo system Depositing head .It is the most advanced equipment for produce jelly candy and gummy candy . It can be produce high quality single color jelly candy ,double color gummy candy , two layer jelly candy ,3D fruit jelly candy and 4D 3color jelly candy with center filling.The jelly candy depositing production line consists of sugar dissolving tank, syrup pump,storage tank with filter system,gummy candy vacuum cooker, buffer tank ,Depositing machine with cooling tunnel . there are 2units chiller on top of cooling tunnel to make sure the best cooling effect.
The jelly candy depositing production line with servo system to control the each action through Intelligent motion control card to Achieve high performance accurate candy depositing .

Model	YL-JCM-I	YL-JCM-II	YL-JCM-IV	YL-JCM-V
Capacity	150kg/h	300kg/h	450kg/h	600kg/h
Power	30kw	45kw	60kw	75kw
Air Consumption	0.5m3/min	0.5m3/min	0.5m3/min	0.5m3/min
Steam Consumption	450kg/h	450kg/h	450kg/h	450kg/h
Steam Pressure	P<0.7Mpa	P<0.7Mpa	P<0.7Mpa	P<0.7Mpa
Water Consumption	2200L/h	2200L/h	2200L/h	2200L/h
Humidity	55%	55%	55%	55%
Dimension	1450X1590X2700mm	1450X1950X2700mm	1450X2310X2700mm	1450X2670X2700mm
Weight	6000kg	7500kg	8500kg	9500kg

---
