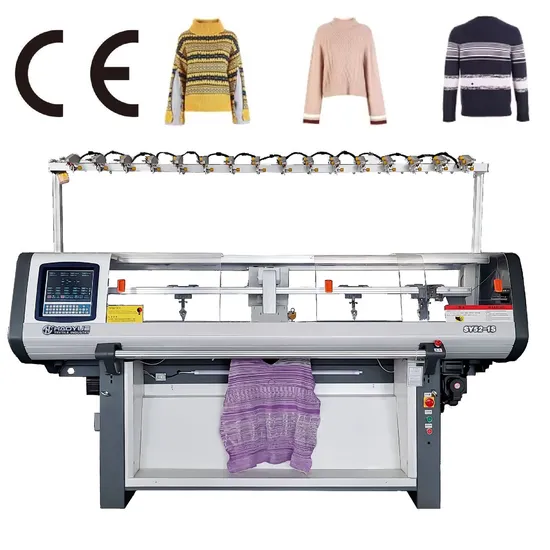

| NINGBO HAOYUE Single system flat sweater knitting machine The single-system flat knitting machine with milling type needle bed. Insert type needle bed(optional). Non-waste yarn COMB device(optional). This series adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns (full needle, single side, Etc.), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting sweaters,blanket, scarfs, hats, and clothing accessories. |
| HENGQIANG CONTROL SYSTEM The machine system can be customized according to your requirements. | MAIHONG CONTROL SYSTEM The machine system can be customized according to your requirements. | RAYNENG CONTROL SYSTEM The machine system can be customized according to your requirements. |
| CARRIAGE Linear velocity of the head can reach 1.6m/s.Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin. In addition, it is secured by short-circuited electromagnetism, motor overcurrent. Locked-Rotor, etc... | NEEDLE BED Split design, insert part fits with the needle are made of imported steel through fine blanking and grinding, which reduces the wear and tear of the stitches, decreases the resistance of the stitches, and effectively improves the knitting efficiency | DYNAMIC STITCH It supports multi-segment stitch control of patterns in one line, realizes the weaving of multiple fabrics with different densities in the same line, and further improves weaving efficiency and diversity of the weaving forms. |
| DISPLAY SCREEN WITH KEYBOARD | SERVO MOTOR | 6 YARN FEEDER |
| It adopts industry LCD display with graphic touch control, multi-color, all time monitoring function. The data of the knitting amount, time, speed, roller, stitch, yarn feeder, etc... | Using cani control, can achieve the rapid return and direction changing of the machine carriage, accurate positioning, smooth conmutation . | The 6 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position. |
| AUTOMATIC RESET PROBE | POSITIVE YARN FEEDER | AUTOMATIC REFUELING(Optional) |
| Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area. | Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency. | In order to make the machine work better, we have developed 24-hours intelligent system for automatic refueling. |
| Gauge | 7G,8G,9G,10G,12G,14G,16G |
| Knitting width | 52,60,80,100inch |
| Knitting system | Single system Double carriage single(1+1) system(optional) |
| Knitting speed | Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s. |
| Knitting function | Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns. |
| Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. |
| Stitch density | Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Dynamic stitch | Using high speed stepping motor, multi-stitch function can be achieved in one line. |
| Needle selection | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.which can be installed or removed simply from the carriage and maintained easily. |
| Transfer system | Not affected by the direction of the carriage, minute knitting. |
| Quickly turning | Intelligent switching braiding system improves machine weaving efficiency. |
| Take-down system | Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between0-100. |
| Color-changing system | 6 yarn feeders on the 3 guide rails, shift able on any needle position. |
| Yarn feeder device | Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality. 7G-10G Adopts roller feeding device 12G-16G Adopts the yarn storage device |
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system | 1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc. |
| Network function | Has network interface,enable remote-monitoring via network,and connecting with ERP system. |
| Power supply | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. |
| Non waste yarn Comb device | Non waste yarn Comb device(Optional) |
| Volume and weight | 2500*900*1800mm,650kgs(52inch) 3800*900*1700mm,900kgs(80inch double carriages) |
| Model | Knitting Width | Machine Package Size(MM) | Gross Weight(KGS) |
| SY52-1S | 52 Inch | 2500*900*1800 mm | Aroun 750 kgs |
| SY60-1S | 60 Inch | 2800*900*1800 mm | Aroun 800 kgs |
| SY60-1+1S | 60 Inch | 3300*900*1800 mm | Aroun 850 kgs |
| SY80-1+1S | 80 Inch | 3800*900*1800 mm | Aroun 1000 kgs |
| SY100-1+1S | 100 Inch | 4300*900*1800 mm | Aroun 1050 kgs |
| NINGBO HAOYUE is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception. |
