Chinese Brand Lovol 0.92m3 22ton 120kw Crawler Excavator Fr220e with Cheap Price

US$78,300.00-98,200.00 1 Unit (MOQ)

Basic Info.

Model NO.
FR220E
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.8-1.1m3
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Warranty
1 Year
After Warranty Service
Video Technical Support, Online Support
Maximum Digging Depth
6510mm
Hydraulic Valve Brand
Imported
Hydraulic Pump Brand
Optional
Moving Type
Crawler Excavator
Video Outgoing-Inspection
Provided
Hydraulic Cylinder Brand
Top Brand
Power
133/2000kw/Rpm
Maximum Digging Height
10190mm
Applicable Industries
Construction Works
Unique Selling Point
High Operating Efficiency
Core Components
Engine, Pump
Machinery Test Report
Provided
Max Digging Radius
9690mm
Specification
22700kg
Trademark
LOVOL
Origin
Shandong, China
Production Capacity
15 Unit/Units Per Month

Product Description

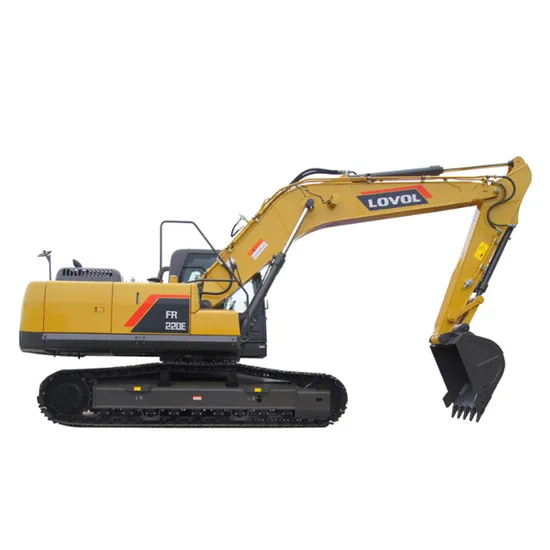

Chinese Brand LOVOL 0.92m3 22ton 120kw Crawler Excavator FR220E with Cheap Price
PRODUCT DESCRIPTION
The FR220E2 excavator uses a high-torque engine with an electronically controlled positive flow control system to make the machine more efficient.
Performance characteristics
Relying on the R&D system of Revo Japan Engineering Center, it has established a solid partnership with internationally renowned companies to continuously optimize and improve the quality and life of parts and components. Engines, pumps, valves, motors, cylinders, controllers, etc. are all first-class in the industry resource of.
The connecting rod is changed from the split type to the integral type, unified the structure of the middle excavation connecting rod, and improves the strength of the connecting rod.
The arm is partially optimized, the structure is strengthened, and the manufacturing process is optimized to reduce welding stress concentration and improve reliability.
Equipped with high-quality mechanical suspension seats to meet the driver's comfort needs, suitable for various working
conditions. The cab that meets the TOPS\FOPS standard makes the operation safer. The new type of seat is used to increase the cushion angle adjustment and seat depth adjustment functions, and the comfort can be adjusted according to the body weight.
Machine parameters


Engine

Total length
mm
9580
model
Isuzu /4HK1
Grounding length (transport)
mm
5085
Type
Pressurized, direct injection, water cooling
Total height (to the top of boom)
mm
3060
Rated power kW/rpm
133/2000
Total width
mm
2980
Maximum torque N·m/rpm
657/1500
Total height (to the top of the cab)
mm
3050
Walking drive

Counterweight ground clearance
mm
1090
Maximum gradeability °
35
Minimum ground clearance
mm
443
Maximum walking speed km/h
5.1
Radius of tail gyration
mm
2880
Maximum traction kN
217
Track ground length
mm
3640
Maintenance filling capacity

Track length
mm
4385
Diesel fuel L
385
gauge
mm
2380
Total hydraulic oil of hydraulic system L
260
Track width
mm
2980
Hydraulic oil tank volume L
220
Track shoe width
mm
600
Engine oil L
20
Tooth height
mm
16
Engine coolant L
34
Machine cover height
mm
2150
Rotary reducer oil quantity L
4
Upper platform width
mm
2700
Travel reducer oil quantity L
5x2
Distance from the center of rotation to the back end
mm
2880
Hydraulic system

Maximum digging height
mm
10190
Maximum flow of main system L
2x234
Maximum unloading height
mm
7260
Maximum pressure of working oil MPa
37.3
Maximum digging depth
mm
6510
Maximum pressure of pilot system MPa
3.9
Maximum vertical digging depth
mm
5980
Slewing mechanism

Horizontal cutting 8′ maximum digging depth
mm
6320
Rotation speed r/min
12
Maximum digging radius
mm
9875
Rotating moment kN·m
65.9
Maximum digging radius on the ground
mm
9690

/
Minimum radius of gyration
mm
2910
