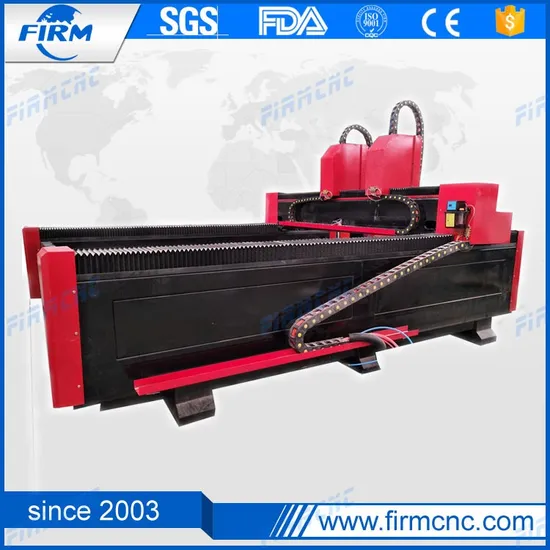

High Procession Carving Engraving Stone CNC Machinery

Product Description

High Procession Carving Engraving Stone CNC Machinery
1. Features
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, imported linear guide rails, running smoothly, high accuracy, long time service.
3. High precision pinion and rack transmission, , could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. Water cooling knife, when carve metal and stone use.
6. Portal frame: Use aviation industry aluminum, long service time. Some factory choose aluminum tube, the cost Is lower, but service time is short.
7. After choose heavy weight, portal frame: Squat sitting structure, when carve metal and stone more steady.
8. Aluminum table +PVC+ sink.
9.4.5kw water cooling spindle.
10. The advanced professional control system compatible with many instruction format, may achieve process Function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
2. Applications
Industry: Mainly used for granite, marble slabs, white marble and other stone carving patterns, such as text pattern. And surely can used for wood mateials carving.
Applicable materials: Stone and non-metallic materials
3. Technical Parameter

Description	Parameter
X,Y,Z Working Area	1200mmx1200mmx300mm
Table Size	1450mm×1450mm
Table Surface	T-slot Table
Frame	Thicker Welded Steel tube Structure
Spindle Power	4.5KW water cooling spindle
Spindle Speed	0-24000RPM
Motors	450B stepper motors ( 4 sets in total )
Driver	YAKO driver
Transmission	X,Y Axis: Helical Rack and Pinion Drive Z Axis: Taiwan TBI ball Screw
Machine Guide Rails	Taiwan Hiwin Linear square guide rail
Inverter	Fuling Inverter
Operating System	DSP control system
Soft Limit switch	Japan Omron limit
AC contactor	France Schneider
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Max. Power Consumption	3KW(Without Spindle)
Working Voltage	AC380V/50Hz, 3Phs (Option: 220V)
Command Language	G Code
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
Software Compatibility	Artcam OR Type3 Software
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Packing Size	3300mm*2100mm*2300mm
N.W.	1450KG
G.W.	1680KG
Optional Parts	Spindle: Air cooling spindle
	Motor and Driver: Servo system Japan: Yaskawa / Panasonic servo China: Taiwan Delta servo
	Control system: NC Studio/Syntec/mach3

4. How to Order Our Machine?
Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.size of your processing materials? ( Length & Width )
3) Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4) Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5) If it is possible, could you send us your product samples' picture? It will help us better tounderstand.
5. Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	200 sets/month
Port	Qingdao, China.

6. Packing&shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
7. Guarantee & Service of Machine
Guarantee:
One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debugand fix.
5) Could be remote control if needed.
8. Introduction of Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a
professional and good reputation manufacturer of CNC router,laser engraving machine, CNC
plasma cutter, laser cutting machine, laser marking machine in China to the new and existing
customers that are spread throughout the South America, Middle East, Southeast Asia, Africa,
Europe and other counties of the world and the machines has passed the EU CE certificate.
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our
customers produce the best quality and high precision products.
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091

---
