Cap-201sr Tabletop PLC Training System Education Laboratory Training Equipment

Product Description

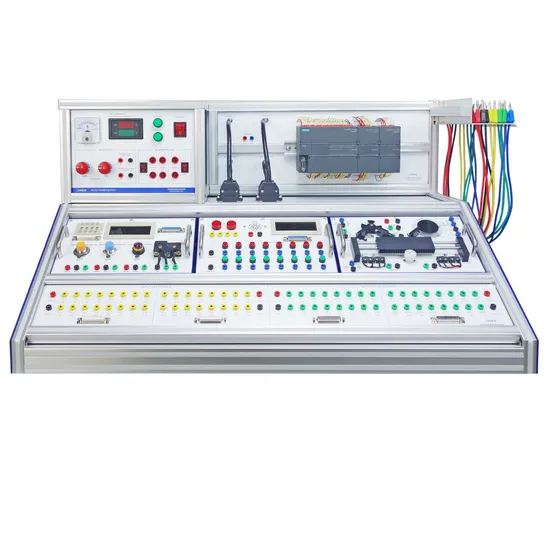

CAP-201sr Tabletop PLC Training System
Product Description
CAP-201sr Tabletop PLC Training System.It has the following advantages:
(1)Structure
• The rear side of the trainer adopts a flip-open structure, and up to 6 (or 3) modules can be placed for storage.
• It uses a standard aluminum profile and has a built-in handle.
• The side sections are used for quick motion trainers to free up placement constraints of the system.
(2)Installation
All terminals lead to safety sockets and experimental pluggable cables and steel cable racks are connected to the main frame.
(3)Components
Execute different PLC controllers in one controller training platform.
(4)Flexibility
Attached to the top together with the PLC unit is an ordinary power box, and they can all be detached from the host for easy-delivery, maintenance and replacement.
(5)Funcation
• Provides a variety of control and simulation units to form a comprehensive programming training system.
• Users can easily and freely select modules and create targeted experiments.
CONFIGURATION

1. Frame part	- Cable holder with 12 slots - Connectors for main frame with power/PLC units - Size: 810*540mm*440mm (approx.)
2. AC/DC Power supply unit	- Input: single phase AC 220V ±10% with ON/OFF switch and voltage indication - Fixed 24VDC power output: max. 6.5A with ampere meter - Variable DC power output: 0…24VDC output, max. 4A. with DVM, coarse/fine ADJ
3. PLC unit	- With all I/O leading to 25-pin serial connector - Standard Siemens SIMATIC S7-200 SMART relay type - Digital input/output: 32 inputs, 32 outputs - Ethernet / RS485 communication with additional serial port - 85...264V AC, 47...63Hz
4. Input and output panel	- 32 inputs / 32 outputs 4mm sockets - 8 common sockets (0/24V) - 4-25 pin connector
5. Accessories	- Cable suite: 4mm, conductor cross section: 16AWG tinned copper wire, 3kV, 20A, with axial socket - STEP 7 programming software (copied on CD)
6. Portable air compressor	- Motor: 1/5 HP, max pressure 6Bar (86Psi) - Airflow: 30-35L/min - Speed: 1450RPM(50Hz), 1700(60Hz) - Weight: 5Kg - Tank: 3.0L - Auto stop 4Bar (57Psi), auto start 3bar (43Psi) - Size: 310mm*135mm*310mm

TRAINING CONTENT

(1)Emergency stop and alarm control	(5) Slider round-trip of relay controlled DC motor	(9)Stepper motor angle control
(2)Traffic light signal control	(6) Digital switch and digital display	(10)Encoding and digital display
(3)Sensor and digital display	(7)Motor speed measurement and digital display	(11)Counting and digital display
(4)Cylinder control	(8) PLC input / output data HMI control

>> CUSTOMIZATION
We support: logo customization, packaging customization, Graphic customization.(Min. order 1 set)
>> Port: Ningbo, Shanghai, or any ports in China
>> LEADING TIME

Quantity (sets)	1 - 50	>50
Time (days)	30	To be negotiated
