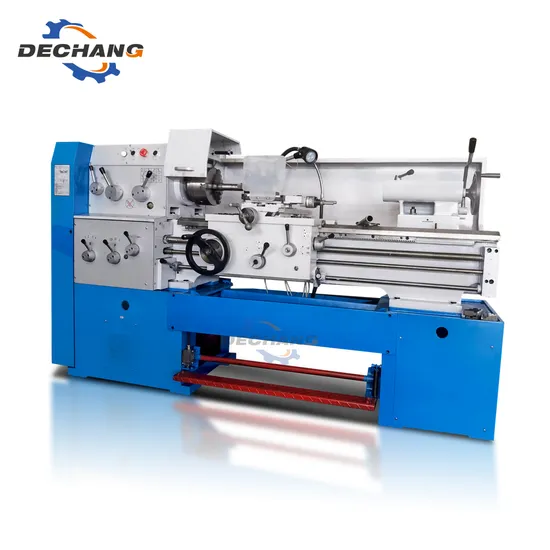

Cheap Hobby Horizontal Lathe Machine C6136 C6236 Gap Bed Lathe Machine for Sale

Product Description

Cheap Hobby Horizontal Lathe Machine C6136 C6236 Gap Bed Lathe Machine for Sale
Product Description
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment
Specifications

SPECIFICATIONS	Units	C6136	C6236
Swing over bed	mm	360	360
Swing over cross slide	mm	190	190
Swing over gap	mm	-	520
Distance between centers	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000
Spindle bore	mm	52(Optional:80)	52(Optional:80)
Spindle bore taper	-	MT6(Optional:Metric 1:20)	MT6(Optional:Metric 1:20)
Spindle speed steps	-	9	9
Spindle speed range	rpm	40-1400	40-1400
Cross slide travel	mm	180	180
Top tool post travel	mm	95	95
Tool size	mm	20 x 20	20 x 20
Longitudinal feeds range	mm/r	0.0832-4.6569	0.0832-4.6569
Cross feeds range	mm/r	0.048-2.688	0.048-2.688
Kinds of metric threads	kinds	19	19
Range of metric threads	mm	0.25-14	0.25-14
Kinds of inch threads	kinds	28	28
Range of inch threads	T.P.I.	2-40	2-40
Kinds of threads module	kinds	17	17
Range of threads module	MP	0.25-3.5	0.25-3.5
Tailstock quill diameter	mm	65	65
Tailstock quill taper	-	MT4	MT4
Tailstock quill travel	mm	130	130
Main motor power	kw	4	4
Coolant pump motor	kw	0.09	0.09
Weight for 750	kg	1200	1200
Weight for 1000	kg	1300	1300
Weight for 1500	kg	1500	1500
Weight for 2000	kg	1700	1700
Weight for 3000	kg	1900	1900
Dimension for 750	mm	2200x1140x1750	2200x1140x1750
Dimension for 1000	mm	2400x1140x1750	2400x1140x1750
Dimension for 1500	mm	2900x1140x1750	2900x1140x1750
Dimension for 2000	mm	3400x1140x1750	3400x1140x1750
Dimension for 3000	mm	4400x1140x1750	4400x1140x1750

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
