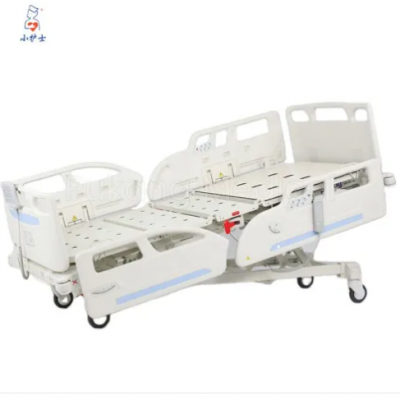

DA-2(A1) Five Function Electric Hospital Bed
Advanced Five Function Electric Hospital Bed form pukang
Our Five Function Electric Hospital Bed is a testament to our dedication to providing advanced medical equipment. This bed is equipped with five essential functions that enhance patient comfort, optimize healthcare delivery, and improve overall patient outcomes. With a focus on user-friendly design and cutting-edge technology, pukang aims to revolutionize the healthcare experience. It offers electric adjustment capabilities for height, backrest, leg rest, Trendelenburg, and reverse Trendelenburg positions. These functions can be easily controlled, allowing healthcare professionals to customize the bed according to individual patient requirements, ensuring maximum comfort and care.
Product Name: Type A1 Five Function Electric ICU hospital bed
pukang Five Function Electric Hospital Bed Technical Features
Outer dimensions (Side rails up)
| L2215*W1035mm(±10mm)
|
Bed height
| H455-785mm(±10mm)
|
Maximum backrest
| 0-65°
|
Maximum knee rest
| 0-25°
|
TR/ATR
| 0-12°
|
Safe working load
| 240kg
|
pukang Five Function Electric Hospital Bed Electric Parameters
Power supply
| 100-240V, 50HZ / 60Hz
|
Maximum input
| 840VA
|
Protection against water and dust
| IP54
|
Equipment classification
| Class II
|
Level of protection against injury from electrical current
| Applied part type BF
|
Electric motor operation mode (load factor)
| 10%, max2min/18min
|
Certificates
Products are manufactured according to European norms for medical technology and hospital beds EN 60601-1, EN60601-1-2, EN ISO 14971, 93/42/EEC, 90/384/EEC EN60601-2-52:2009
Standard Configuration
1. Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls.
2. Removable Mattress Platform: Easy removable and easy for sterilization. The mattress
3. H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.
4. Protective corner bumpers
5. Lifting pole or infusion stand holes
6. Mattress holders
7. Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively.
8. Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.
9. Four 125mm castors with central locking system
10. Manual CPR: The electric CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.
pukang Advantages
pukang has more than 20 years of experience in medical device manufacturing and is a well-known and trustworthy brand in the industry. Thousands of hospitals and more than 110 countries and regions around the world have chosen Pukang Medical.
We provide product support, extensive training and technical guidance to ensure healthcare professionals can get the most out of their beds. Troubleshooting assistance and ongoing technical support are just a few of the many ways we strive to meet and exceed your expectations.
Trust pukang to provide you with the tools you need to provide exceptional patient care. Contact us today to learn more about our breakthrough solutions and how they can transform your healthcare environment.
>>
