| US$4,000.00-9,000.00 | 1 Piece (MOQ) |
| Washing Color Fastness Testing Machine | ||||||
| Model | SW-12B | SW-12E | SW-20E | SW-24E | SW-24H | |
| FOB price(US $) | 4110.00 | 4610.00 | 5680.00 | 6180.00 | 9450.00 | |

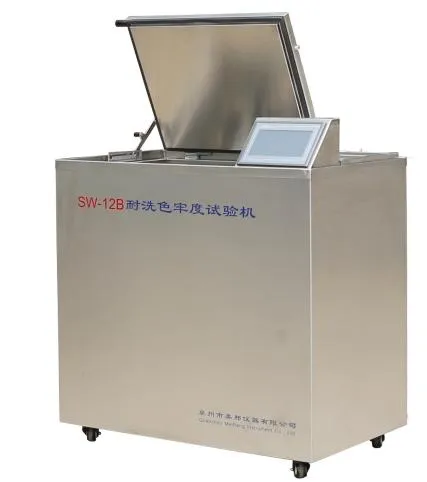

| Picture | ||||||
| Application | This color fastness test machine apply to test dyeing textile color fastness changing degree after washing | |||||
| Standard | GB/T 3921.1-5,ISO 105-C10,GB 5711,GB/T 12490,JIS L0860,JIS L0844,AATCC 61 | |||||
| Feature | Screen control | Color touch screen | ||||
| Box Structure | All made of 304 stainless steel | |||||
| Transmission structure | Adopting all aluminum reducer and synchronous pulley | |||||
| Test procedure | The test program is equipped with 5 sets of national standard programs, 5 sets of American standard programs, and 3 sets of freely editable programs are reserved | |||||
| Inlet and drainage | Hand movement | Automatic water inlet and drainage, convenient for instrument use, maintenance and cleaning | ||||
| Temperature control | Adopting PID algorithm with temperature calibration function | |||||
| Door detection | When opening the door, the motor stops rotating to prevent hot water burns | |||||
| Test cup | 12 national standard test cups as standard (American standard test cup can be added) | 12 national standard test cups as standard (American standard test cup can be added) | 20 national standard test cups as standard (American standard test cup can be added) | 24 national standard test cups as standard (American standard test cup can be added) | 24 national standard test cups as standard (12 for each cylinder) | |
| Specification | Power | 5kW | 5kW | 5kW | 5kW | 10kW |
| Rotation speed | 40±2r/min | |||||
| Test cup size | (National standard) 550ml, (American Standard) 1200ml | |||||
| Timing range | 1~999min | |||||
| Set temperature range | Room temperature~99ºC | |||||
| Temperature control fluctuation | <±1ºC | |||||
| Heating mode | Electric heating tube | |||||
| Instrument placement | Foot block pulley type | |||||
| Power supply | AC380V 50 Hz 5kW (customized AC220V 50 Hz 5kW) | |||||
