Vmc850 CNC Vertical Machinning Cneter 12000rmp

Product Description

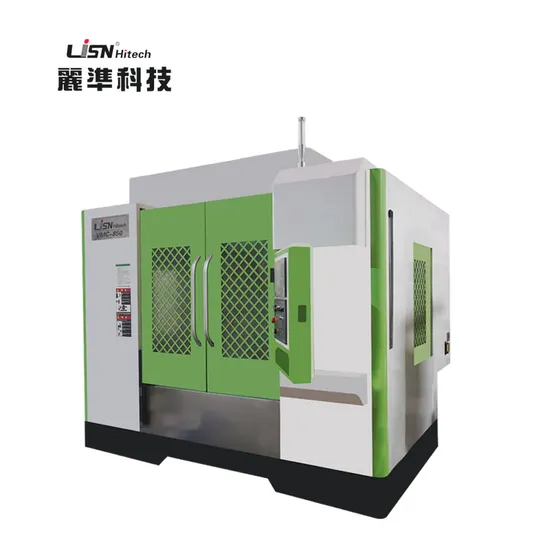

The 4 axis VMC-850 is a high performance CNC vertical machining center developed and manufactured by our company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer's needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency.

Product Parameters

ITEM	MODELS	VMC850
WORKTABLE (WIDTH*LENGTH)	mm	500x1000
DISTANCE BETWEEN T SLOTS	mm	5-18x100
MAX LOAD BEARING OF WORKTABLE	kg	600
X/Y/Z AXIS TRAVEL	mm	800/500/500
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	110-810/110-610
SPINDLE HOLE TAPER	-	BT40
SPINDLE SPEED RANGE	r/min	12000
SPINDLE MOTOR POWER	kW	7.5
X/Y/Z RAPID FEED SPEED	m/min	36x36x36
MAX CUTTING FEED SPEED	mm/min	12000
TOOLS MAGAZINE CAPACITY	pcs	24
X/Y/Z POSITION ACCURACY	mm	0.005
X/Y/Z RE-POSITION ACCURACY	mm	0.003
MACHINE DIMENSION	mm	2495x1970x2360
MACHINE WEIGHT	kg	5000

Company Profile
Taiwan Lizhun established a branch in Dongguan Changan, Guangdong Province in 2006. It is a high-tech CNC machining center manufacturer wihch integrating research and development, production, sales and service. The company specializes in the production of CNC machining centers and surrounding supporting machine tools and other equipment. Its' factory is located in Dongguan City, which is known as the "world factory" and also covering an area of more than 20,000 square meters. After in-depth exploration of market demand and unremitting research and innovation, it now has a group of highly efficient R & D, production and service team. The LiSN brand wihch belongs to Lizhun has been trusted by many famous brands based on its comprehensive technical support, professional testing equipments and testing methods, comprehensive organizational structure and industry-leading service philosophy. The industries of its products and services cover mould industry, new energy industry, 5G industry, furniture industry, machining industry, construction machinery industry, power equipment industry, aerospace industry, etc., and it has dedicated its wisdom and solutions to manufacturing in China and also the world. Lizhun wil be continuing to uphold "integrity and Innovation" spirit of the enterprise for the domestic and foreign customers to provide high quality machine tools and equipment and a full range of solutions.
FAQ
1. Is it all right to make customer's own brand name? A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight

---
