Product Description
Product Description

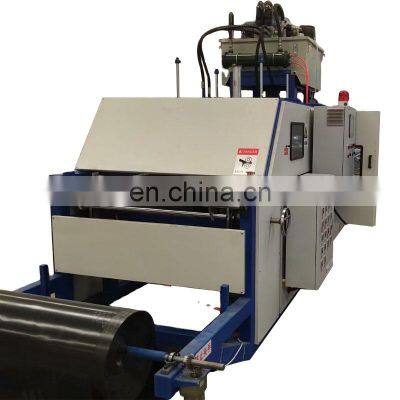

cooling tower fill forming machine/ PVC pp fills machine This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PP material.Structure feature: 01. The machine is combined with pneumatic , mechanical and electricity driving, adpot PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .All working action can adjust uder non-stop production . It’s convenient and high capacity , easy for operation .02. The working method can crosscut by different pattern of fill .03. Servo Motor feeding , Feeding Length stepless adjustabe , precision and reliable.04. Cutting Unit with Servo Motor Driving , Electrical & Pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .05. Forming area is big and easy for mold installation & replace.06. Cylinder Roll Sheet Loading , Feeding Chain manual adjust.07. Upper , Lower mold stroke limited , Up mold descend motor adjust.08. Forming area double adjustable , can save the sheet material .09. Back acting plate adopt double cylinder method , motor setting position .10. Two step of Vacuum .11. Fan Blowing , Air Spray Cooling Device .12. Heater adopt individual heating temperature control . ( Point to Point )13. Advance sheet feeding , heating parameter can automatic adjust. Specification MaterialPP/PVC/HIPS/APET/PETGForming width500-1500 according the mouldForming lengthany according the mouldForming Height<180mm Mould And so on if you need other mould , it is can be custom-madePlease contact us at 24 hours!!! Candy whatsapp/wechat:008615031118002Email:candy(at)
>>
