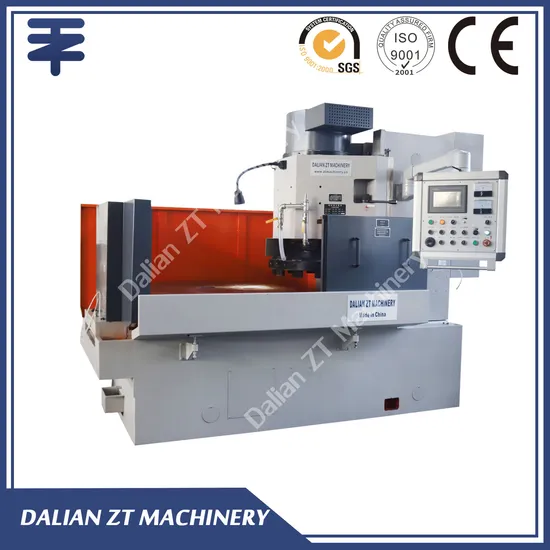

Manual Vertical Spindle Grinder with Rotary Worktable

Product Description

Product Description
The grinding range is from Φ500mm to Φ1600mm. is a high-efficiency grinder with round electro-magnetic worktable and vertical wheelhead, with its wheel end-face for flat-surface grinding, so it is used for rough-grinding of stock or rapid-grinding for moderate accuracy, suitable for batch production workshop. If fine-grit wheel is provided, the machine can also be applied for grinding higher finish and higher accuracy workpieces such as bearing rings, piston rings etc. Accordingly, this machine is suitable for grinding in automobile, tractor and bearing industry.

Item	M7450	M7480	M74100
Worktable diameter	500mm	800mm	1000mm
Worktable speed	5-20rpm	5-20rpm	5-20rpm
Max. swing diameter of workpiece	580mm	850mm	1080mm
Worktable movement		440mm	520mm
Total machine power	27kW	37(44)kW	53(63)kW
Max. loading of worktable	200kg	700kg	1000kg
Grinding wheel size (OD*ID*H)	350x280x125mm	450x380x150mm	560x460x150mm
Segment tool size (LxWxH)	WP150x80x25mm	WP150x80x25mm	WP150x80x25mm
Grinding head motor power	22	30(37)kW	45(55)kW
Roughness of machined surface	Ra0.8	Ra0.8	Ra0.8

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge; Detailed Photos
Packaging & Shipping
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price. Customer's Visiting

---
