Product Details
Product Description
Product Description
Product Description
Basic Info.
Model NO.
TM-IR800y
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Print Interface
USB2.0
System Supported
Windowsxp32
Condition
New
Total Wattage
55kw
Wind Fan Wattage
45W/220V*2
Conveyer Motor Wattage
90W/1p/220V
Conveyer Speed
0~25m/Min
Speed Adjustment
Stepless
U Heater Lamp Wattage
1.5kw/220V×6PCS
Max Height of Production
100mm
Total Length
15m, Heat Length: 12m
Transport Package
Plywood Case/Wooden Case/Carton/as Required
Specification
4050*1010*1680
Trademark
Tamprinter
Origin
China(Mainland)
HS Code
8443198000
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
238.00cm * 195.00cm * 160.00cm
Package Gross Weight
380.000kg
Product Description

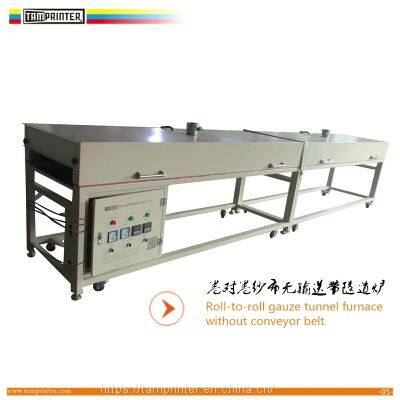

TM-IR800y 5m Industrial high efficient IR drying machine
Video click here
About the frame
overall dimensions (outside): L 5000 * W800 * H 1000mm
2 pcs Plywood 2.65*0.95*1.24m
All are heating zone, no belt system.
The rack all use 80 * 40 thick flat pass welding production, machine feet with 40 * 40 square pass welding production, each section 2.5 meters. The surface process spray treatment(computer white) after rust treatment , the line is assembled body type, machine feet with adjustable foot cups.
About the tunnel
About the Drive System
No Drive System.
Line body overall dimensions (outside); L 5000 - w 800 1000mm all heating zones, not into the discharge zone.
1. Framework: 80*40 thick flat chassis used in all pass welding production. HUR embankment 40*40 square pass welding production, each 2.5 m. Surface after rust treatment spray (computer white), line body is assembled, machine feet oven can be with adjustable foot cups:
2. Oven: heating zone dimensions:. 1. 2500 * W 800 *H 1250mm * 2 part;
outside of the oven, the gall bladder using 1.5mm cold plate bending welding production, surface get rust treatment sprayed (computer white).
liner sandwich plate is using 1.0mm stainless steel plate bending production, strengthen the internal filling-keel. using 1.0mm lower inner
insulation.
stainless steel, oven insulation is with 100K cotton insulation to compact and fill (T100mm).
3. supply system:
line body is with no driving force transmission, auxiliary equipment helps to drive;
heating system:
(1)oven: divided into two temperature zones control each temperature zone heating domestic high-quality short-wave infrared lamp heating, each district using 700mm / 1000W / support * 12, a total of 24, the total power 24.4Kw
(2) thermostat part: Thermostat imported intelligent digital temperature control table temperature, relay output control, total feed electrical box located at the top of the oven heating system with ammeter, voltmeter, total air switch system. oven is without air transport machine.
technical requirements:
1. oven temperature from room temperature to 220 degrees, must be adjustable thermostat
2. left, right and furnace temperature difference within plus or minus 5 degrees, the control accuracy is 1 degree.
Technology
Tamprinter Infrared Convection Oven ( shortwave )
1 imported shortwave infrared light radiation heating tube furnace used in all mirror panel system , equipped with special light tube reflector , can be 100% of all light reflection to the surface.
(2) using a uniform hair dedicated exclusively internal circulation duct temperature is very uniform.
3 equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
4 stainless steel chain and belt driven , easy to go astray , to load heavy metal category of products, with a special adjustment of the speed and stability.
5 light wavelength 0.76-1.6um, the strongest penetration , suitable transformer plant , electrical plant and other metal coil dipping baked or roasted dispensing electronic products .
Tamprinter Infrared Convection dryer ( MW )
1 medium-wave infrared light tubes imported radiant heating furnace used in all mirror panel production, with special reflector tube light , can be 100% of all light reflection to the surface.
(2) using a uniform temperature of the inner loop hair exclusive special duct temperature is very uniform.
3 equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
4 imported TeflonE Wimbledon with a high resistance to rotation , suitable for the size class range of products , with a power converter, speed and stability .
5 light wavelength 0.76-3.6um, the surface absorbed the best baked products , such as glass, printing, textile printing , spray drying surface coating industry .
Tamprinter Infrared Convection tunnel
Drying principles outlined
Conventional oven heating pipe heating using heat from the heated surface of the object to its internal thermal conductivity , so the heating process is slow, uneven heating , and some products first love hot conjunctival surface cause internal moisture can not get out , easy to produce bubbles or deformation.
Infrared Convection Oven is the use of energy efficient infrared light tubes imported produce infrared electromagnetic radiation directly to the object , so that objects within the molecular oscillation , internal and external heat simultaneously quickly and thoroughly remove the moisture inside the object , the surface will not get out of the water inside the first dry produce surface blistering, internal roasted quit and so on.
Energy efficient advantages:
1 Energy: Infrared Convection Oven power than ordinary furnace small 1 / 3 , warming fast start ( 2-10 points can be raised to 200 degrees ) , the thermostat automatically reduces small current wave ( energy savings of 30% -70 % )
(2) Efficient : Infrared Convection Oven direct radiation makes the product molecular oscillation product , so the product simultaneously inside and outside heat, fast drying product moisture , direct -saving 5-10 times .
(3) quality and stability : infrared light to heat pipe heat inside and outside at the same time , the internal water discharged in time , the product surface is not easy to blister, uniform color appearance .
4 Green Explosion : Infrared Convection Oven baking time is short, short residence time before curing , the time to reduce pollution and harmful gases discharged in time , not stuffy harmful in the furnace , the furnace safe and clean , easy to produce flammable gas deflagration and other risks.
Welcome to your inquiry!
>>
