High Precision Fanuc Automatic CNC Lathe with Steady Rest Ck6150t

Product Description

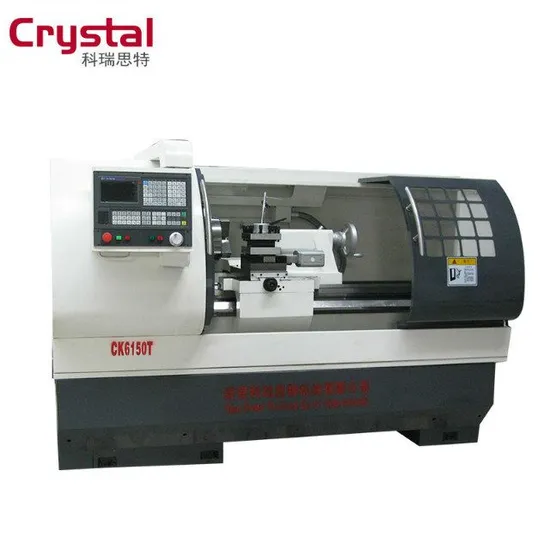

High Precision Fanuc Automatic CNC Lathe with Steady Rest CK6150T
The machine through the numerical control system could automatically process the
inside and outside cylinder surface, cone surface, circular, arc surface, end face etc.
Also can process the single and multiple threads in metric, inch and other standards.
Product Display

A. Main Features
1. It is made from the whole cast-iron, which is heavy enough with good rigidity and
stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and
high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
The extra size diameter of the spindle bore is φ72mm while the diameter of chuck is
φ250mm.
B.Specification of CK6150T

ITEMS	Specifications
Max. swing over bed	Φ500mm
Max. swing over carriage	Φ290mm
Max. length of work piece	1000mm
Width of the machine	360mm
Size of three-jaw chuck	250mm
Range of spindle speed	150-2000rpm
Spindle bore	Φ72mm
Spindle taper	1:20/Φ90
Spindle nose	Type of spindle head D-8
Spindle speed step	step-less
Stations of tool carrier	4 station electric tool carrier
Tool bar section	25X25mm
X/Z axis position accuracy	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm
X/Z axis torque	6/10N.M
X/Z axis travel	280/1000mm
X/Z axis fast feeding speed	8/10 M/MIN
Taper of tailstock quill	MT5
Max. range of tailstock quill	150mm
Motor power	7.5KW
Packing size(length ×width ×height)	2660mm×1560mm×1730mm
Gross weight	2500kg

C. Standard configurations
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station electric tool carrier
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50/60Hz
