High Quality and Competitive Price 3zt 9 Tines Spring Cultivator Subsoiler Tiller

US$540.00
5-14 Pieces
US$520.00
15+ Pieces

Basic Info.

Model NO.
LK
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Orange
Warranty
12 Months
Width of Cut
1200
Depth of Cut
100-250
No of Tines
5
Weight
260
Tractor Power
25
Mounted Cat
Class I Three-Point Suspension Cat1
Transport Package
Iron Frame
Specification
260kg
Trademark
LK
Origin
China
HS Code
8432100000
Production Capacity
5000pieces/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 120.00cm
Package Gross Weight
200.000kg

Product Description

Product Description

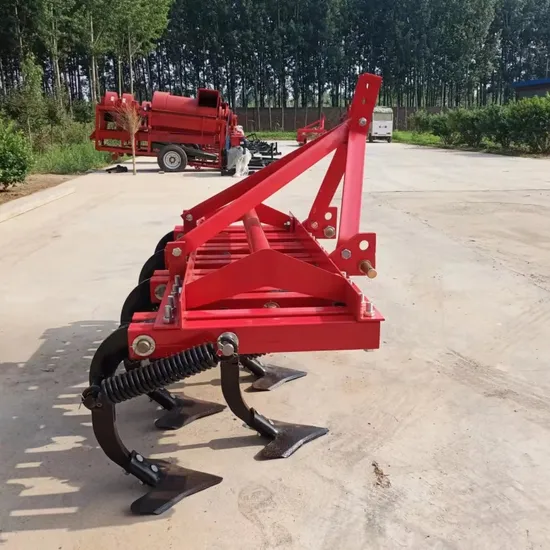

This double-spring cultivator is a new type of cultivator developed by our company based on market demand. The machine adopts a spring tensioning device. When the cultivator encounters an obstacle during its work, it will automatically lift it up and quickly return to its original work after passing it. state, thereby protecting the plow tip. The machine has the characteristics of easy adjustment of row spacing and depth adjustment. It can be used for loose soil operations such as drawing, potatoes, and corn.
Detailed Photos

Product Parameters
Model 3ZT-1.2 3ZT-1.4 3ZT-1.8 3ZT-2.2 3ZT-2.5 3ZT-3.0
Width of cut (mm) 1200 1400 1800 2200 2500 3000
Depth of cut (mm) 100-250
No of tines 5 7 9 11 13 15
Weight (kg) 260 320 400 490 550 640
Tractor power (hp) 25 30-40 40-50 50-70 70-80 80-100
Mounted cat Class I three-point suspension Cat 1 Class II three-point suspension Cat II
