Farm Tractor Implements Middle Duty Disc Harrow 24 Middle Disc Harrow

Product Description

Product Description
Mounted middle duty disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances and remains. It can be used in light and medium soil
Product Parameters

Model	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Width of cut (mm)	1600	1800	2000	2200	2400	2500
Depth of cut (mm)	140
Q'ty of disc	14	16	18	20	22	24
Weight (kg)	350	380	420	470	540	650
Tractor power (hp)	30	40	50	60	70	80
Mounted cat	Cat ll

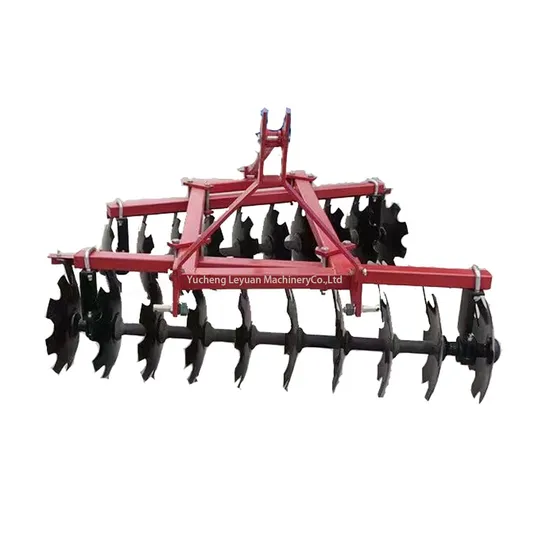

Detailed Photos
FAQ
Q1: Are you manufacturer or trading company ?
A: we are direct factory , welcome to our factory for inspection.
Q2:Where is your factory located?
A: Yucheng city ,Shandong province,very near to Jinan city .
Q3: Can I get some samples?
A: Yes,only if it is small part and you would like to pay the courier cost. Regarding the big parts or machines,small trial order is suggested.
Q4:Can we put our logo on it ?
A:Yes, of course , we can do it according to your detailed requirements.
Q5: Can we visit your factory to test quality before delivery?
A:Yes, of course ,we sincerely welcome you to visit us at your convenient time.
Q6: Warranty.
A:1 years warranty time since it arrives your destination port .
Q7: Payment.
A:30%TT as the first payment, the balance before shipment..
L/C at sight.

---
