Reed Alfalfa Wheat Harvesting and Bundling Machine Wheat Reaper Binder for Agriculture

Product Description

Reed alfalfa Wheat Harvesting and Bundling Machine Wheat Reaper Binder for agriculture
Product Description
Introduction of diesel engine Rice wheat reaper binder
This automatic 4 wheels reaper binder is a kind of new harvesting and binding machine which cutting crops and bundle them into a certain size automatically. It configures one 1.4 meters cutting attachment ahead, combined with the operation and steering system of the boat-shaped tractor, with the rear tail wheel seat. The operation is simple and comfortable and easy to operate for a long time.

Product Parameters

Model	DM-140
Power type	Diesel engine
Start method	Electric start
Power	8.8kw/12hp
Gears	3+1
Speed km/h	1st:5.5; 2nd:7.5; 3rd:10; reverse:6
Power output	1800r/min
Machine weight	400kg
Cutting width	140cm
Crop height requirements	70-150cm
Bundle height	35cm
Height of cutter from ground	3-5cm
Machine size	3600*1850*1200mm

Application
Application of the Rice wheat reaper binder
This machine suitable for all kinds of growing crops, such as wheat, sorghum, sesame, alfalfa, soybean and forage grass and so on . The harvesting width can be 140 cm width.

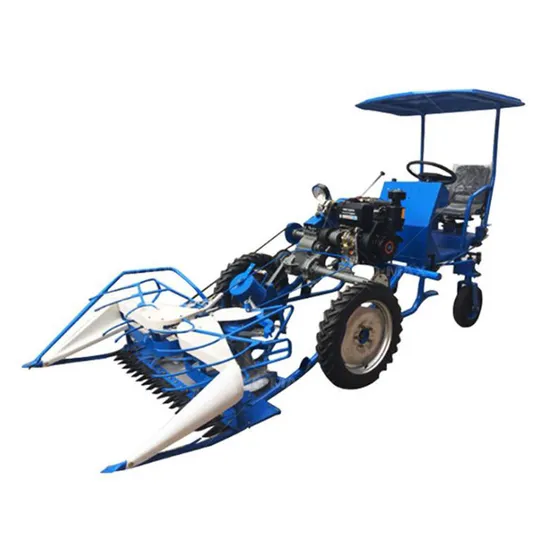

Machine pictures display
Feature to diesel engine Rice wheat reaper binder
1.Flexible connection between engine and transmission clutch,with quantitative compensation, shock absorption and cushioning performance,high efficiency,light weight, and large carrying capacity .
2.With automatic differential steering and hydraulic disc brakes system, drive safer and more reliable.
3.Totally harvest, low stubble, high productivity, automatic binding/tying, automatic throwing, perform better on wheat,paddy,barley,oat,reed etc .
4.Also could choose the gasoline engine.
