RF Hf ERW Tube Making Machine ERW Tube Production Machine

Product Description

Product Description
High frequency welded pipe making machine is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. Right side are process flow chart of our pipe mill line.
This Tube Mill production line consist of seven part:
1.Double-head Uncoiler
2.Shearing & butt welding machine
3.Cage Loop
4.Forming and sizing mill
5. H.F. welder + Electric Control System
6.CNC flying friction saw
7.Run out Table
Detailed Photos
Layout View
Shear and Butt Welding
Shear Butt Welder is an necessary part of the tube mill. It's function is to weld the steel strips end together. It contains strips entering device, shearing device, welding device, moving rack device, pneumatic or hydraulic system.
We have the pneumatic shear butt welder and Hydraulic shear butt welder.
Usually, for thin steel plate, customer can choose either the pneumatic and hydraulic one. When the thickness is more than 3mm, we suggest customer choose the hydraulic type.
In order to make the perfect weld quality, we use the Siemens touch screen and PLC, which can control the weld speed and current automatically.
Accumulator( Horizontal or Vertical)

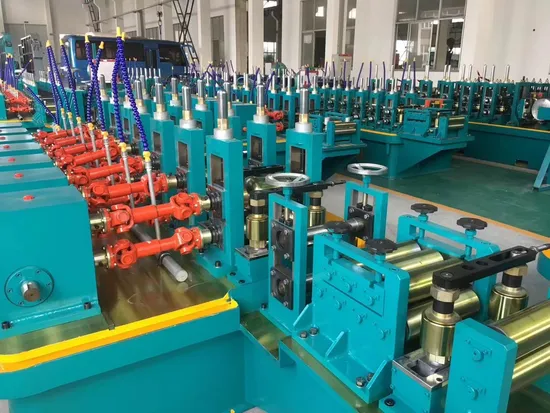

Forming and Sizing
High Frequency Induction Appliance
Automatic Cold Cutting Flying Saw
Features
1. The equipment base is equipped with inlet guide rollers (upper and lower, left and right rollers), the front end of the clamp is equipped with auxiliary guide rollers, and the final discharge position has idlers. All idlers help the parallel movement of the pipe during the sawing process.
2. Both ends of the saw body are equipped with carriage safety buffers;
3. The saw blade is equipped with a steel brush device to remove iron filings on the saw blade when rotating
Product Parameters

Model	Round Pipe	Square Pipe	Rectangular Pipe	Thickness	Pipe Length	Line Speed	Welding Type	High Frequency Power/KW	Standard
MYZGJ16	7.5 - 16 mm	/	/	0. 4 - 1.0 mm	4.0 - 10.0 meters	Max. 120 m/min	Solid State High Frequency Welding	60	/
MYZGJ20	10 - 25.4 mm	10 x 10 - 20 x 20 mm	10 x 20 - 10 x 30 mm	0.4 - 1.0 mm	4.0 - 10.0 meters	Max. 120 m/min	Solid State High Frequency Welding	60	/
MYZGJ32	12.7 - 38.1 mm	10 x 10 - 30 x 30 mm	10 x 20 - 40 x 20 mm	0. 5 - 1.8 mm	4.0 - 10.0 meters	Max. 120 m/min	Solid State High Frequency Welding	100	/
MYZGJ45	15.0 - 50.8 mm	12 x 12 - 40 x 40 mm	10 x 20 - 50 x 30 mm	0.6 - 2.0 mm	4.0 - 10.0 meters	Max. 100 m/min	Solid State High Frequency Welding	150	/
MYZGJ50	20.0 - 63.5 mm	15 x 15 - 50 x 50 mm	10 x 20 - 60 x 40 mm	0.8 - 2.75 mm	4.0 - 10.0 meters	Max. 100 m/min	Solid State High Frequency Welding	200	/
MYZGJ60	25.4 - 76.4 mm	20 x 20 - 60 x 60 mm	10 x 30 - 80 x 40 mm	1.0 - 3.0 mm	4.0 - 10.0 meters	Max. 90 m/min	Solid State High Frequency Welding	250	/
MYZGJ76	31.8 - 89.0 mm	25 x 25 - 70 x 70 mm	20 x 30 - 100 x 40 mm	1.0 - 3.75 mm	4.0 - 10.0 meters	Max. 80 m/min	Solid State High Frequency Welding	300	/
MYZGJ89	38.1 - 102.0 mm	30 x 30 - 80 x 80 mm	20 x 40 - 100 x 60 mm	1.0 - 4.0 mm	4.0 - 10.0 meters	Max. 80 m/min	Solid State High Frequency Welding	300	/
MYZGJ114	38.1 - 114.3 mm	30 x 30 - 90 x 90 mm	20 x 40 - 60 x 120 mm	1.0 - 4.0 mm	4.0 - 10.0 meters	Max. 70 m/min	Solid State High Frequency Welding	300	/
MYZGJ125	63.5 - 127 mm	50 x 50 - 100 x 100 mm	60 x 40 - 150 x 50 mm	2.0 - 5.0 mm	4.0 - 10.0 meters	Max. 60 m/min	Solid State High Frequency Welding	400	/
MYZGJ165	76. 2 - 165 mm	60 x 60 - 130 x 130 mm	80 x 40 - 140 x 120 mm	2.0 - 6.0 mm	4.0 - 10.0 meters	Max. 60 m/min	Solid State High Frequency Welding	500	/
MYZGJ219	89.0 - 219.0 mm	70 x 70 - 170 x 170 mm	80 x 60 - 140 x 200 mm	2.0 - 8.0 mm	4.0 - 10.0 meters	Max. 60 m/min	Solid State High Frequency Welding	600	/

The specification of every model depends on the tube size and thickness. The value is for reference. Please contact us for confirmed technical proposal.
Packaging & Shipping
We provide safe and quick delivery service. Every part loaded in the container are well fixed for a safe trip. Work Shop

FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you?A: Yes, we will. We are professional supplier of pipe and tube mill. Our cooperated factory is well qualified for overseas markets. Our team has over 15 years' experience in designing, manufacturing, commissioning. We are also certified member of MIC.
2) Q: How to choose the Pipe/Tube Mill Line?A: You are requested to inform us following details:- The pipe material- Round pipe range- Square pipe range- Rectangle pipe range- Wall thickness range- The pipe usage
3) Q: Where is the nearest airport to your company?A: Shanghai Pudong
4) Q: How about your service? A: Before sales:Technical Support: provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
After sales:
Provides comprehensive After Sales Support and Service to meet our customer need.Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.Installation and commissioning: will send our technicians to customer's workshop for supervision of installation and commissionTraining of Customers' technician/workers during commissionBreakdown Support: We offer 1 year warranty service for main crucial components except consumablesInform immediate technical assistance and advice to customer by phone or e-mail.Skilled and experienced engineers are capable of dealing with any type of breakdowns.Technical service work performed in Customer's site if required.Urgently supply mechanical or electronic components.Fast supply of spare parts and wearing parts to cover foreseeable requirements.

---
