Top Quality Animal Feed Pelletizing Making Machine by Liyang Factory

Product Description

Product Description

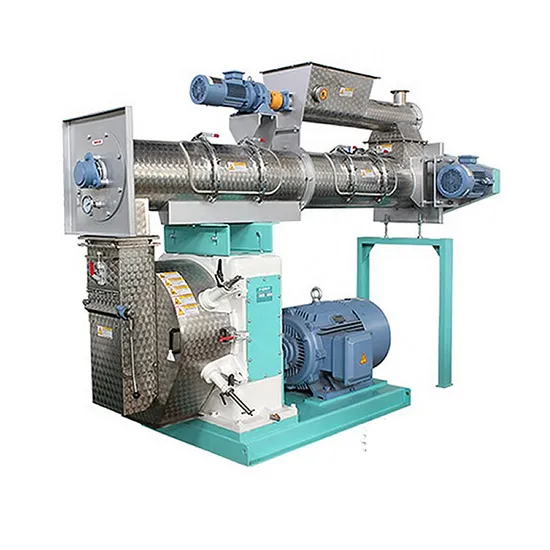

Ring die feed pellet machine is used to make feed pellets from grain, such as: corn, wheat, soyabean, rice or biomass material. Our ring die pellet mill advantage is reduced roller and die wear, and reduced energy consumption. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines


Product Parameters

No.	Item		SZLH250	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
1	Capacity (ton)		0.5-1.5	1-5	45329	45363	45365	45402
2	Power(KW)	Main machine	15/22	37	55	75/90	90/110	132/160
		Screw feeder	0.55	0.75	0.75	1.5	1.5	1.5
		Conditioner	1.5	3	3	5.5	5.5	11
3	Inner diameter of die (mm)		φ250mm	φ350mm	φ350mm	φ400mm	φ420mm	φ508mm
4	Pellet size (mm)		φ2-φ18mm	φ2-φ18mm	φ2-φ18mm	φ2-φ18mm	φ2-φ18mm	φ2-φ18mm
5	No. of press roll		2	2	2	2	2	2
6	Shaping rate(%)		≥95%	≥95%	≥95%	≥95%	≥95%	≥95%

Our Advantages
1.This pellet mill is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities;
2.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts;
3.High quality bearings,motoris adopted to makes operation smoothly.
4.Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
5.Ring dies with multiple kinds of bore diameters are optional, and high-quality craft ring dies are adopted, so that the service life is long, the discharged particles are smooth and the quality is high.
Application
Applicable for fertilizer pellet,feed pellet for poultry and livestock...
FAQ
1. What's your raw material?
Wood chipper, log, sawdust, or etc.
2. What's the capacity do you want?
1t/h,2t/h,3t/h...
3. What's the pellet diameter you want?
We can produce Φ2mm-Φ12mm etc.
Contact with us
O(∩_∩)O Welcome you to inquiry at any time, we promise any inquiry will get our prompt reply.
Best Regards,
Ellen
---------------------
Liyang Weifeng Equipment Co., Ltd.
Add: No.108 Jingang Road, Zhongguancun Science&Technology Park,Liyang, Jiangsu, China

---
