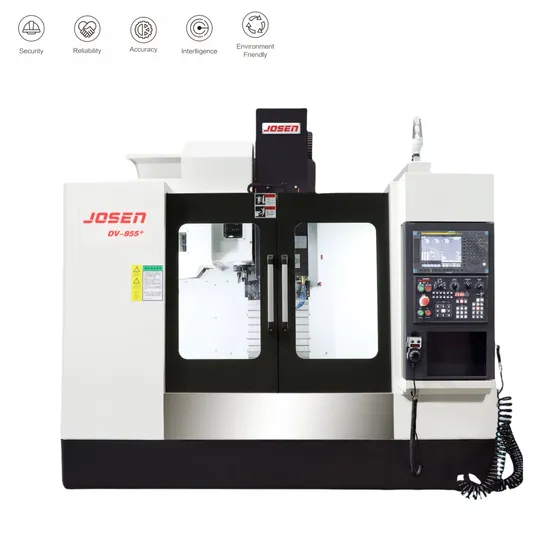

Heavy-Duty Vertical Milling Machining Center CNC for DV855 machinery Product Description
| Number | Name | Number | Name |
| 1 | FANUC 0I-MF CNC controller | 10 | Chip pan and water tank |
| 2 | Full cover shroud | 11 | Transformer |
| 3 | Automatic lubricant system | 12 | Spindle air curtain dust protection syste |
| 4 | Ground bolts and spacers | 13 | Mechanical, electrical and operating instructions |
| 5 | Tool-box | 14 | Rigid tapping |
| 6 | Work light | 15 | Electrical box heat exchanger |
| 7 | Warning light | 16 | Machine cleaning water gun |
| 8 | M30 automatic power-off system | 17 | Three-axis slide telescopic shield |
| 9 | Portable chip blowing air gun | 18 | 24-blade arm type tool magazine |
| Description / Machine Model | Unit | DV-855 |
| Itinerary |
| X-axis travel | mm | 800 |
| Y-axis travel | mm | 500 |
| Z-axis travel | mm | 550 |
| Distance from nose of spindle to table surface | mm | 120-670 |
| Workbench |
| Working table size (X*Y) | mm | 1000*500 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*80 |
| Max. loading capacity of working table | KG | 600 |
| Spindle |
| Spindle motor (continuous/30 minutes) | kw | 7.5/11 |
| Spindle speed | rpm | 10-10,000 |
| Spindle inner taper bore | | BT40 |
| Three axis | | |
| X/Y/Z axis motors | kw | 1.8/1.8/3 |
| Feed rate |
| Rapid feed rate (X/Y/Z) | mm/min | 48000/48000/48000 |
| Fastest cutting feed rate | mm/min | 1-10,000 |
| Tool change system (optional) |
| Tool magazine capacity (standard/optional) | set | 24 |
| Tool magazine form | | Knife arm type |
| Latin form | | MAS-P40-1(45°) |
| Maximum tool diameter of adjacent tools | | Ø80 |
| Max. tool diameter of empty adjacent tool | | Ø150 |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 7 |
| Machine accuracy |
| Three-axis laser positioning accuracy (JIS6338 actual measurement method) |
| Positioning accuracy (full stroke) | mm | ±0.005 |
| Repeat positioning accuracy (full stroke) | mm | ±0.003 |
| System |
| Controller | | FANUC 0I-MF |
| Oil pressure system |
| Water tank capacity | liter | 220 (rear) |
| Pneumatic pressure requirements | kg/cm2 | 6 |
| Electricity |
| Power Specifications | | AC380±10%,3 phase,60Hz/50Hz |
| Electricity demand | KVA | 50 |
| Other |
| Machine weight | T | 5.1 |
