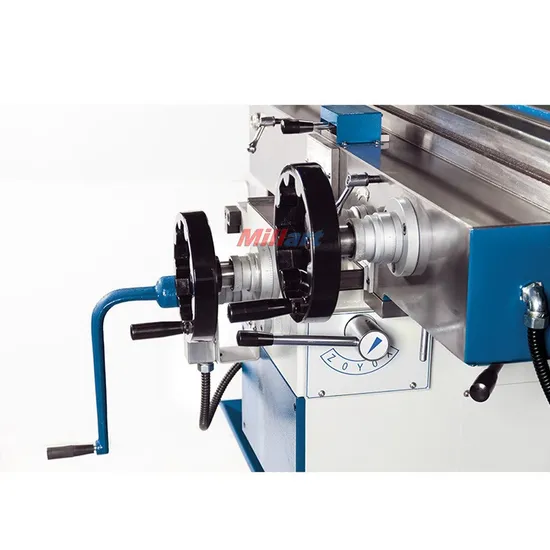

XL6036 XL6036c XL6036cl Horizontal Milling Machine, Universal Drilling Milling Machine with Vertical Milling Head Is Standard

Product Description

Product Description
Technical parameter :
Feature:
1. CAST IRON OF HIGH RIGIDITY.
2. GUIDEWAYS QUENCHED AND FINE GRINDED.
3. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE.
4. DIFFERENT COLORS REQUESTS ACCEPTABLE.
5. ROTARY TABLE CAN BE ORDERED SPECIALLY.

Specification	Unit	XL6036	XL6036C	XL6036CL
Spindle taper	-	7:24 ISO50
Distance between spindle nose and table	mm	20-480	20-470
Distance from spindle axis to arm	mm	175
Spindle speed range	-	12steps 60~1800r.p.m
Table size	mm	1325X360		1600X360
Table travel(X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
T-slots(NO:/width/pitch)	mm	3/18/70
Arm travel	mm	500
Main motor power	kw	5.5
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1800X2100X1870	2245X2100X1870	2520X2100X1870
Net weight	kg	2450	2515	2560

Standard accessories:
Wrench,
Draw bars(2),
Mill arbors(2)
Oil gun
Foundation screw
Optional accessories:
Dividing head
Machine vice
Rotary table
Digital readout
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
