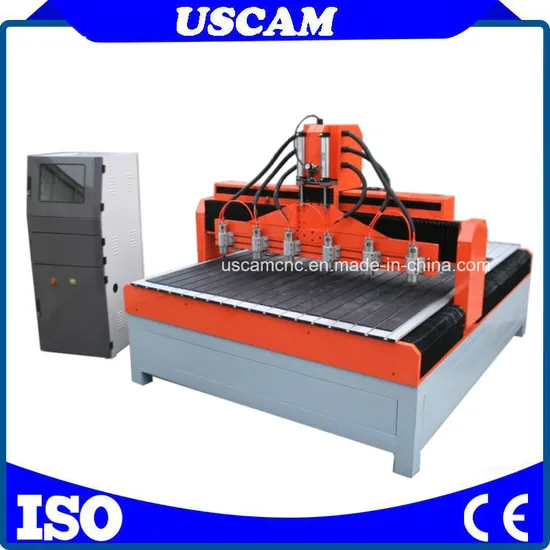

CNC Wood Milling Router with 6 Spindles Working Together

Product Description

CNC Wood Milling Router with 6 Spindles Working Together

Advantages
1. 10mm industrial class Welding Steel Frame. You can use our Uscam cnc router more than 10 years.
2. Vacuum table and pump. Saving time, improving efficiency.
3. DSP control, very easy operation and support offline which means that you can still operate even power off.
4. Italy HSD Air cooling spindle, or water cooling spindle. International famous brand, good using and guaranteed after-sale service
5. Stepper motor with big power supply. Servo motor for your option.
Technical Parameters

X,Y,Z Working Area	1300x2500x200mm
Spindle	air cooling( water cooling is optional)
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Lathe Structure	Welded Structure
Transmission	X,Y AXIS--Rack transmission, Z AXIS----ball screw tranmission
Max. Consume power	5.0kw
Max. Speed	0-32000mm/min
Max. Working Speed	0-20000mm/min
Spindle Power Motor	Servo
Spindle Speed	0-24000RMP
Working Mode	air cooling
Working Voltage	AC220V/ 380V /50HZ /60Hz
Command	G Code, *uoo, *mmg, *plt
Operating System	DSP System (Option: Mach3 PC Software)
Flash Memory	32M
Collet	ER25
Software	Ucancam software, Artcam software, Option
Running circumstance	Temperature: 0°C~45°C, Relative humidity: 30%~75%
Packing Size	3150*2260*2300mm
Net Weight	1227kg
Gross Weight	1240kg

#All the working area and specifications can be customized according to your requests.
Machine parts
Applicable Industries

1. Woodworking industries:
Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
2. Advertising industry:
Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3. Die-board industry:
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. other industries:
A variety of large-scale relief sculpture, video carving, widely used in gift processing industry
Samples of this machine
Package and Shipping Detail
1. Free fumigation PLYWOOD CASES
2. We have 3 layers package. For the outside, we adopt free fumigation wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.
3. For this cnc router machine, it is suitable to transport by sea, by land or by rail.
FAQ
Q1: How to get the most suitable model with competitive price?
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
Q2: How about the delivery time after ordered?
The delivery time is about one week after ordered it.
Q3: Does machine comes with software?
We offer ArtCAM or Type3 software with machine.
Our service
# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
Welcome visit our factory
