Mabs02 Bladder Scanner with Low Price

Product Description

Product Description

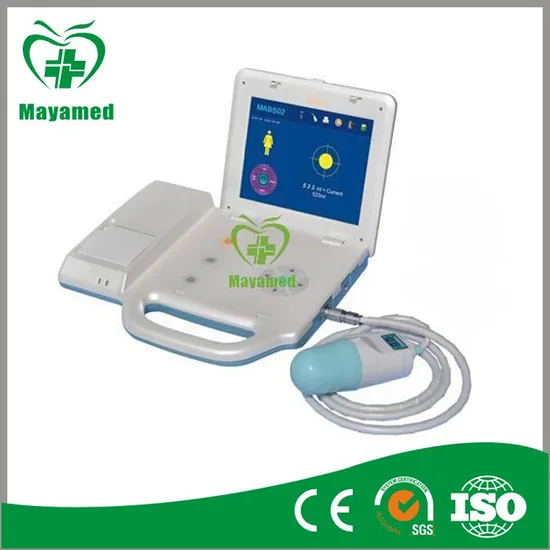

Mabs02 Bladder Scanner with Low Price
Bladder scanner is a portable device with advance 3-D Ultrasound technology and dedicated for noninvasive measurement of bladder filled volume. It can speedily complete the detection of bladder area through pre-scan of probe connected with the device and the display used color TFT LCD. Its measured result can be printout with thermal printer and also can be stored in the built-in flash-disk to send to the computer through USB interface. By this provides clinical data for judging the opportunity to apply catheterization, which reduces the frequency of catheterization and risk of UTI. It is also intended for evaluation of the residual volume after urination, evaluating treatment effect of a medicine or treating plan. The power for the device comes from built-in battery.
Feature:
Light weight, easy to carry, accurate, safety, operating easily
Portable, design and battery-driven, it offer great convenience to use
Save Patient info and image up to 100 cases
Display real-time bladder image and position in-phase
Automatically measurement and display its result.
With USB interface can send the report to PC
Limitation of unnecessary catheterization
Reduction rates of urinary tract infection
Help in managing incontinence
Enable wide diagnose and anatomic measurement of bladder
Most common application area:
Urinary incontinence,
Urinary retention,
Urinary tract infections
Obstetrics, Gynecology, Rehabilitation, Pediatrics,
Note:
It cannot be used on wounded skin.
For patients with hypertrophy of the prostate, space occupying disease or scars, there is a risk of producing a result exceeding the given accuracy range.
Technical Specification
1) Transducer: 2.6MHz;
2) Probe: Mechanical sector scanning;
3) Detect depth: ≥ 140 mm;
4)Host power supply: Internal battery
5) Battery: Voltage 7.4V (standard value), capacity: ≥ 4200mAh
Charge the batteries: Charge for 3.5-4 hours full;
Full batteries: Sustainable use for 4 hours(In the ready state);
6) Charger: Input voltage for the device: AC 220V± 10%, 50± 1Hz;
Output voltage for adapter: 9.0V;
Output voltage for charger: 8.5V;
7) Output interface: USB for data store and software upgrade
8) Display mode: Measured result, present location and B mode image
9) Measured result: Automatically measurement and display its result.
10) Case management: Store, browse and export
11) Max. Measurement: 999ml;
12) Measurement accuracy: 0ml≤ V≤ 999ml, ± 15%;
13) Storage capacity: 100 cases
14 ) Device dimension: 310X260X50mm;
15) Net weight: About 2.1 KG.
Our Services
1.For all your inquires about us, we will reply you in detail within 24 hours.
2.We own professional team with professional attitude to recommend products and
services for you.
3.The products have one year free warranty, after which they can still be
provided after-sales service.
4. We offer OEM services. And we can print your own logo on the product.
5. We have well-experienced engineers, who can help you better use our products.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope
we can offer you more help in medical field and build the long term business
relationship with you.
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you
arrange the payment ; If we don't have the products in stock you want, we will
start production once getting the payment.

Q: What's the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.

Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The
price will be adjusted appropriately as the price fluctuation of raw material in
the market.

Q: What's the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about
one week to finish the production.
Packaging & Shipping
Packaging:Standard export corrugated paper board cartons or wooden box
Pallet: Plastic/ Wooden pallet
Shipping:By sea/ By air/ By courier (DHL, FEDEX, UPS, TNT)

---
