Qt4-15semi-Automatic Block Machine Block Making Machinery Concrete Block Machine From Huatong

Product Description

Detailed Photos

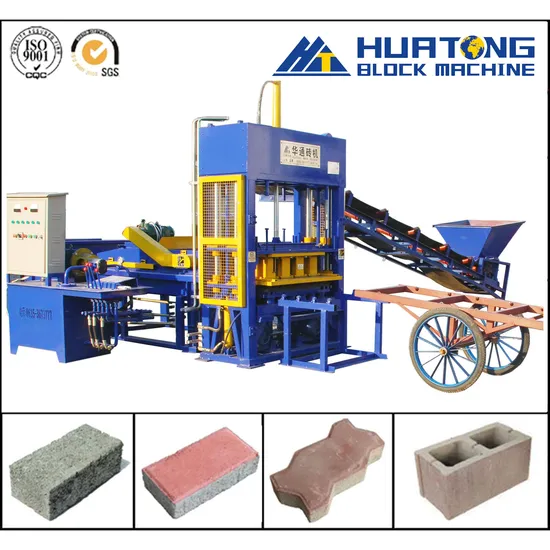

QT4-15Semi-automatic Block Making Machine

Technicial Parameters of QT4-15Block Making Machine
Dimension	2800x1570x2600	Weight	4500KGS
Pallet Size	960x630mm	Performance Standard	JC/T920-2011
Mode of Vibration	Table Vibration	Vibration Frequency	4200r/min
Vibration Force	70KN	Cycle Time	15-25Sec.
Hydraulic Motor	7.5kw-4P	Vibration Motor	4.0kw-2P x2
Concrete Feeder Motor	4kw-23-4P	Belt Conveyor Motor	2.2kw-43-4P
Wet Block Conveyor Motor	1.5KW-35-4P	Total Power	21.4 kw

Production Capacity of QT4-15Block Making Machine
Block Type	Size(L x W x H)	Picture	Pieces/Pallet	Pieces/8Hours
Hollow Block	400x200x200mm		4	5760
Hollow Block	400x150x200mm		5	7200
Hollow Block	400x100x200mm		7	10000
Stock Brick	220x105x70mm		20	28800
Hourdi Block	530x160x195mm		5	7200
Holland Paving Block	200x100x60mm		16	23000
S- Paving Block	225x112.5x60mm		14	20000

Features of QT4-15Block Making Machine

1.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and density.The machine can produce hollow block,solid block,paving block by changing mould.

2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and well distributed.The vibration is oil-immersed to have a good lubrication

3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.

4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system

5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.

Working Site Picture of QT4-15Block Making Machine

Certifications
Company Profile
Shandong Huatong Hydraulic Pressure Machinery Co., Ltd is one of the best Concrete Block Machine and concrete mixing plant in China which founded in 2004. Now we have sold machines to more than 65 countries such as Russia, North Korea, Malaysia, Vietnam, Egypt, Panama, Zambia, Sudan, Uganda, South Africa and so on...Our company covers 45000 square meters. There are 400 skilled workers, 12 engineers, 45 technicians. And huatong has 12 workshops which are used for steel cutting, welding, machining, assebling and so on. Our company is certificated enterprise by ISO9001. All machines must be inspected by the quality control department to ensure the quality. Huatong has R & D department and production workshop, specializing in machinery research and development work. The models of our concrete block machine are QT4-15 Semi-automatic Block Making Machine, QT5-15Semi-automatic Block Making Machine, QT5-15Automatic Block Making Machine, QT8-15Automatic Block Making Machine, QT10-15Automatic Block Making Machine. Meanwhile the models of our concrete mixing plant is HZS25, HZS35, HZS50, HZS60, HZS90 and HZS100.Our company has won many honours such as The Best Ten Brands of Block Making Machinery in China, Chinese Qualified Products, Member of China Construction Association, Advanced Technology of Mould Making from Shandong Scientific Center and so on.

---
