5.5kw Spindle Power Marble Engraving Machine

Product Description

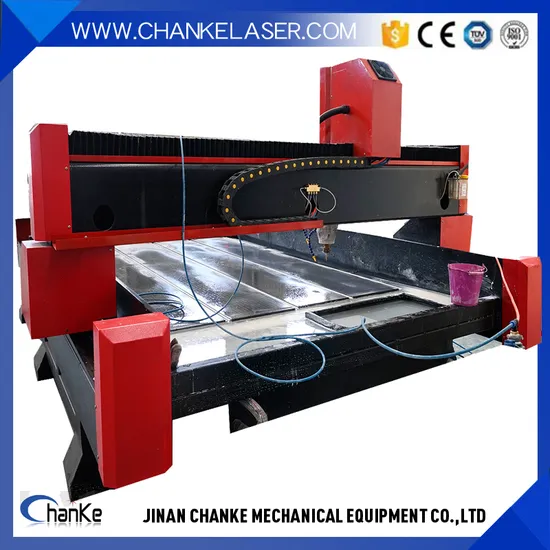

Discover the 1300x2500mm CNC Marble Engraving Machine tailored for precision in stone and marble carving.
1. Enhanced Stability: The T-slot mesa and lathe bed provide robust stability for all your engraving needs.
2. Prolonged Cutter Life: Our advanced water cooling system ensures your cutter's longevity, keeping your operations running smoothly.
3. Seamless Operation: Features like breakpoints and power failure continued carving function minimize disruptions and enhance productivity.
4. Long-Term Durability: The dust oiling structure effectively maintains the machine's performance over extended periods.
5. Superior Cutting Power: The high-power, water-cooled brushless motor enhances cutting capability, ensuring wear resistance and durability.
6. Reliable Performance: Main components are sourced from top-tier brands, ensuring stable and reliable performance.
7. High Compatibility: This machine supports a wide range of CNC software, including Type3, Artcam, Castmate, Pore, Wentai, and various CAD/CAM programs.
8. Optimal Cooling: Equipped with a sink and automatic water supply system, it ensures efficient cooling for cutting tools and stone or metal machining.
9. Industrial-Grade Durability: Built with a heavy-duty, all-steel welded structure and tempering aging treatment, this machine is strong, non-deformable, and durable.
10. Advanced Protection: Our triaxial exclusive dust protection and waterproof technology shield the guide rail, gear, and rack from cutting dust and debris, extending part life.
Applicable Industry
Ideal for the stone industry, stone processing, art, advertising, decoration, and ceramics relief industries.
Technical Parameters

Working size	1300×2500×200mm cnc stone machine
Spindle power	Water cooling 3000W
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver(Chinese servo motor and Japan servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	High accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	0.03/300mm
Engraving speed	12000mm/min
Data transmission	PC connect directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	1500kg

Our stone CNC router machines are expertly packed with inner plastic wrap and steel structure, and an outer plywood case. The inner package secures all small parts, while the plywood protects the machine during shipping.
Advantages of Plywood Case Packaging:
Firstly, plywood cases offer superior compressive strength and bearing quality, making them the preferred choice for heavy goods packaging.
Secondly, with a large board area and solid structure, the plywood case is excellent for leakproof and waterproof protection, alongside simple operational processes.
Thirdly, for imports, the plywood case is fumigation-free, simplifying the procedure considerably.

---
