Plastic Machinery Pet Plastic Steel Belt Equipment for Servo Winding Machine

Product Description

https://membercenter.made-in-china.com/productmanage.do?xcase=view&prodId=kaBpsnzTCSWd&queryGroupId=&queryCatCode=&pageSize=30&queryState=-1&prodUpgradeActivity= Product Description
PET strapping production line equipment fully meets environmental protection requirements. PET plastic steel belt can be produced using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
PET strapping production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure that the product quality is the same every time.
The equipment is equipped with two sets of shaping oven systems, one stretch shaping, two shaping shaping, etc. The equipment consists of: stirring part, feeding part, drying part, dehumidification part, main machine part, cooling part, extension part, shaping part, small traction part, large traction part, embossing part, winding machine, etc.

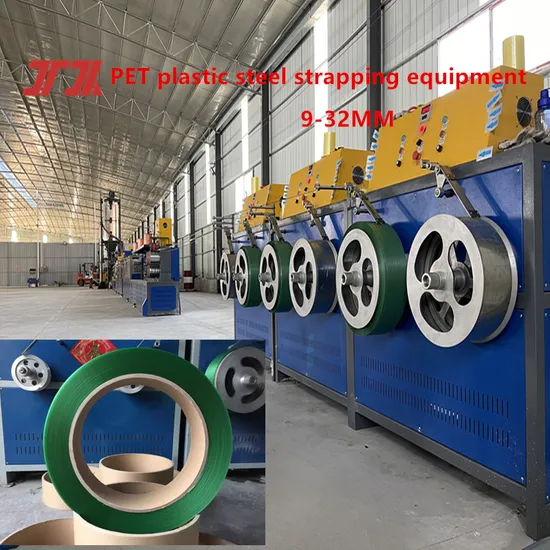

PET plastic steel belt winding machine can be equipped with: Automatic winding machine or semi-automatic winding machine
Features of automatic winding machine:
a, Human-machine interface: various functions and displays in the PLC touch screen panel of the automatic winding machine (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)
b, The automatic winding machine replaces PET plastic steel belts of different specifications and widths without replacing the transmission gears, belt grooves, etc. The back and forth axis line travel is automatically calculated by the computer, and the bandwidth spacing can be fine-tuned by the servo.
C, The automatic winding machine moves through the swing arm, and the sensor synchronously adjusts the winding speed to achieve constant tension winding.
D, Two modes of weight and meter are available, and the button one-button control spring gas expansion disk is used. The 9-32MM bandwidth arrangement is automatically calculated, and the side roller fits the guide belt to rewind, so that the finished PET belt rewinding end surface is flat, neatly arranged, and the spacing is uniform without overlapping.
Technical parameter of PET strap double output extrusion line

Model	PET-2	PET-3	PET-4	PET-6	PET-8
Raw materials	100% Bottle flakes/crushed materials
Number of tapes	2	3	4	6	8
Width (mm)	9-32
Width (mm)	0.4-1.2
Maximum line speed(m/min)	>=150	>=150	>=150	>=150	>=150
PLC control system	PLC	PLC	PLC	PLC	PLC
Screw Model	90	100	125	150	180
Reducer model	200	250	280	315	350
Dryer tank	3000L	4000L	5000L	6000L	6000L
Dehumidifier	1000	1000	2000	3000	3500
Metering Pumps	100CC	100CC	100CC	100CC	100CC
Screen Changer	Single cylinder
Winding machine	Automatic winding/ Semi-automatic winding
Production capacity /24 H	5-6T	7-8T	10-12T	12-15T	18-20T

PET packaging belt production line process
Material→mixing material→pre-drying material →dehumidification and drying material→Melting material and extrusion→material embryo expression(with embryo) cooling molding→pre-heating oven→firstly streching→secondary stretching→embossing→setting oven to shaping→cooling→Final product winder
Application of PET belt making machine
PET packaging tape, also known as plastic steel tape, is a new type of binding tape that replaces steel tape. It is widely used in industries such as cotton spinning, chemical fiber, metallurgy, casting, can making, refractory materials, ceramics, brick making, glass, paper making, furniture, tobacco, wood, electronics, etc.

FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS

---
