Air Drying Equipment Ftvs-70 252m3/H Double-Stage Transformer Evacuation Plant for Vacuum Distillation

Product Description

FUOOTECH FTVS Series Double-stage Transformer Evacuation System
Product Description
Introduction & Application
Series FTVS Double-stage Transformer Evacuation System, vacuum pump set is a new type of vacuuming equipment developed and produced by our company. It is widely used in the process of producing vacuum condition for various equipments. Its vacuum pressure can reach much lower than any other products in the same field.
It is widely used in the vacuuming process in the production, installation and maintenance of many electric power equipments, like electric power transformer, capacitor etc., and is also used in the technical process of industrial production, such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc.
It is not suitable for the vacuum process for air and gases containing too much powder, water and oxygen as well as explosive, corrosive, poisonous and chemical substances.

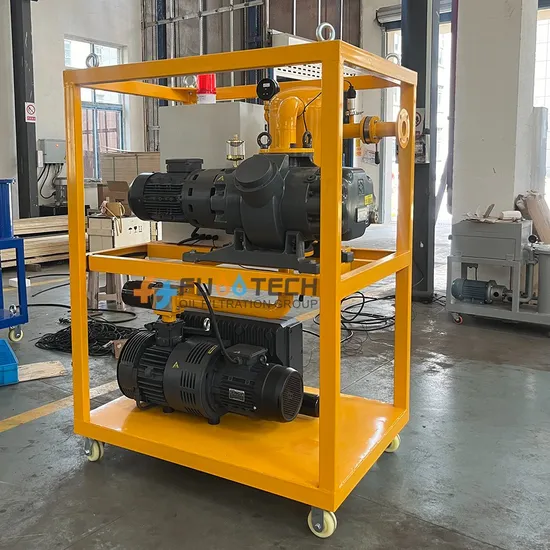

Detailed Photos
Technical Parameters

Technical Parameter	FTVS-30	FTVS-70	FTVS-150	FTVS-300	FTVS-600	FTVS-1200
Nominal Pumping Speed (L/s)	30	70	150	300	600	1200
Nominal Pumping Speed (m3/h)	108	252	540	1080	2160	3500
Limited pressure (Pa) for Mechanical Booster Roots pump	5×10-2
Limited pressure (Pa) for rotary vacuum pump	6×10-2
Total Electric Power (kw)	2.2	2.6	4.5	8.5	16.5	23
Roots Pump Type	ZJP -30A	ZJP -70A	ZJP -150A	ZJP -300A	ZJP -600A	ZJP -1200A
Rotary Vacuum Pump Type	X-25	X-40	X-100	X-202	X-300	2 sets of X- 300)
Power Supply	50Hz, 380V, 3 phase - or as per your requirement
Noise dB (A)	≤ 80
Continuous Working	≥2000 Hours
Cooling Method	Air Cooled				Air/Water Cooled
Gas Inlet Caliber (mm)	DN50	DN80	DN100	DN160	DN200	DN250
Gas Outlet Caliber (mm)	DN34	DN60	DN70	DN90	DN70	DN90
Overall Dimensions (cm)	125×100×170	140×110×198	170×120×210	175×135×220	175×145×215	190×160×269
Weight (KGS)	186	290	480	798	1160	1570

Features
1.The system consists of powerful dual vacuum pumping system including special Mechanical Booster Roots Pump - Rotary vane vacuum pump combination of vacuum pumps, so the vacuum pumping speed and pressure are obviously better than any other devices.
2. Working vacuum range and maximum vacuum degree are superior to other products.
3. Equipped with a control panel with buttons and main breaker for controlling the operation of the two pumps.
4. Consist of necessary high quality pipelines and valves to operate the system.
5. It is installed with special vacuum gauge for accurate indication.
6. Stable and reliable operation, low noise.
7. Lightweight and mobile frame.
8. Protection vessels to prevent oil intake into the vacuum booster and the vacuum pump.
9. Fully Enclosed for weather proof, can be used in outside fields (Optional).
10. Single-axle or Double-axle mobile trailer mounted for moving to outside conveniently (Optional).
Users options 1) Trailer type with fully closed for protecting equipment (waterproof and dustproof).
2) Choosing different kinds of rotary vane vacuum pump, booster vacuum pump, and electric part.
3) Anti-explosion (EX type) electric parts and motor.
4) Equips pirani vacuum meter on the machine.
5) Fan & heat exchanger can be installed
6) Stainless steel material for the body.
7) Color is customized.
