Portable Manual Hose Crimper Crimping Tool Onsite Price

Product Description

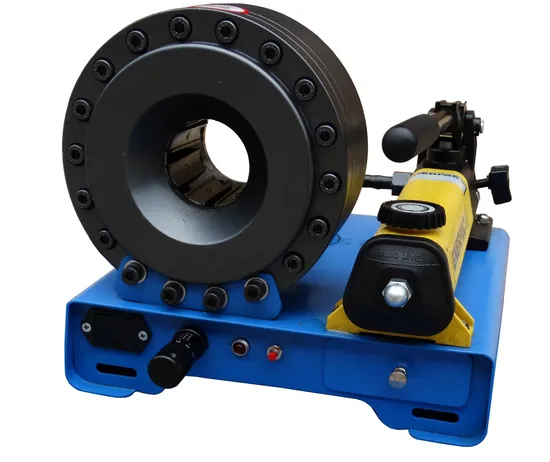

Technical Data of Manual Hydraulic Hose Crimping Machine KM-92S-A

Model	KM-92S-A
Crimping range	1/8" -1" 2SN
Swaging Force	1040KN
Pump	Maual Pump ENENPAC
Opening without dies	φ53mm
Opening	≥ 18mm
Oil tank	328ml
Hydraulic oil	L-HM32
No. of standard die sets	7 sets
Machine weight	26.5 kg
Systematic pressure	30Mpa

Advantages Of KM-92S-A Manual Hydraulic Hose Crimping Machine
1).Small volume,low weight (only 26.5KGS) and easy to be moved;
2).When crimping to the pre-set size, indicator light will be on;
3).Suitable for outdoor, non-electricity manipulation;
4).Load-off handwheel make the die return fast.
Dies Information
Dovetail Type Dies 7 sets, easy to install
When crimp elbow fittings, after crimp, you can take out one or two jaws, then take the crimped hose out easily.
Applications of Manual Hydraulic Hose Crimping Machine KM-92S-A
1).Suitable for OUT DOOR MAINTAINCE, ONLY 26.5KGS, EASY TO CARRY.
2).Suitable for 1 inch/25mm hydraulic oil hose.
3).Suitable for washing hose, bathroom pipe.
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
