20W Mini Laser Engraving Marking Machine Laser Engraver

Product Description

Product Description

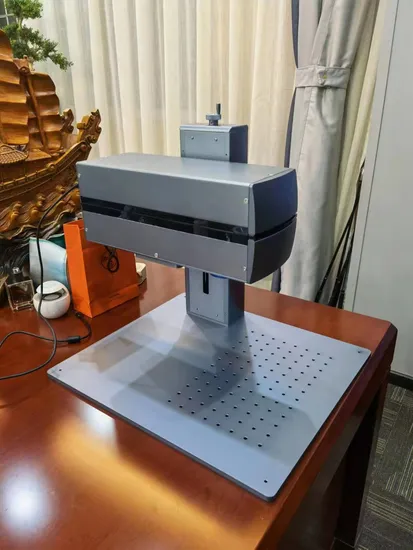

HL-20 mini laser marking machine adopts MFP-10W to 20W laser, high photoelectric conversion efficiency, good beam quality, maintenance-free, marking on the surface of metal materials (copper, aluminum) and non-metal materials with high quality and long life , fast speed, low cost and other advantages.
Product Performance
The parameters marked in red by the galvanometer marking scan:
1. Laser working distance: 119MM (Use F160 lens: 190MM)
2. Working Range: 70MM*70MM (Use F163 lens: 110*100MM)


Appication

Product Parameters

power:	20w
laser wavelength	1064nm
makring area	100*100m
optional marking area	110*110mm/1 50*1 50mm
marking speed	8000mm/second
minimum line width	0.012mm
minimum character	1.5mm
repeated precision	0.003mm
life-span of fiber laser module	100.000 Hours.
beam quality	m2<1.5
focus spot diameter	<0.001 mm
output power of laser	10%-100%continuously to be adjusted
system operation environmen	windows xp/wind7/wind8

Features 1.It can be used to process a variety of metals, non-metallic (effect depending on lasertype) material, especially for high hardness, high melting point, brittle materials, more obvious advantages.
2, It is a non contact processing, does not damage the product, no tool wear, with high marking quality.
3. Laser beam is very small, and the material consumption is very small, and the processing thermal influence area is small.
4. The processing efficiency is high, the use of computer control, easy to realize automation.
Advantages All kinds of metal materials and some non-metallic materials marking
Air cooling system, no maintenance
Free to change the marking parameters and graphics
Stable working performance, life time can reach 100,000 hours
Marks are anti-falsification, more fine and unique


Certifications

Our Advantages
After Sales Service
1. 7*24 hour 2. Response time<12 hours 3.Online support 4.Product replacement 5. Customer field service 6. Backup products during repairing for long time cooperators * International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

---
