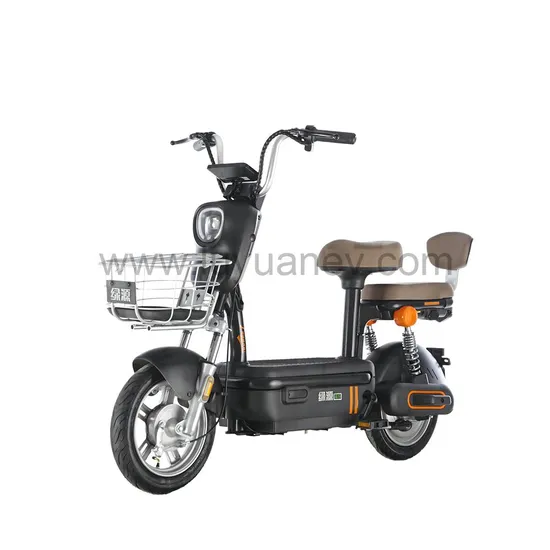

LUYUAN FBQ3 Plus 48V20AH Lead acid/CSP 400W 6X Liquid Cooling Motor Electric Scooter

Product Description

Product Parameters

Model Name	FBQ3 Plus
Vehicle code	698140000
Rated motor power	60V/450R/400W 6X Liquid Cooling Motor
Battery	60V20AH Lead acid (Optional 60V23AH CSP)
Charger	Input AC 90-240V, Output DC60V3.0A
Controller	60V25A
Max speed	25km/h
Range	70-80km
Brake(Front/Rear)	F/R:Ceramic drum brake
Light	LED light
Display	LED Digital display
Shock absorber	F:Aluminum cylinder hydraulic R:Spring +Hydraulic
Wheel size and tire	14*2.5 Radial anti-puncture tire
Anti theft system	Remote control alarm/NFC
Climbing ability	6°
Weight(exclude battery)	42KG
Battery Weight	30KG
Product dimension	1515*660*1040 mm
Loading Qty.	49pcs/20GP, 105pcs/40HQ,133PCS/40HQ

Product DescriptionFBQ3 is a low-speed electric scooter with a lead acid battery, front and rear drum brakes and a liquid-cooled motor that operates with up to 90% efficiency, resulting in a 30ºC reduction in running temperature. It has a cute and exquisite design, smooth lines, beautiful appearance, and strong performance, with a maximum mileage of 60km. Cheap and fine, FBQ3 is cost-effective and suitable for daily commuting by the working class and university students. The scooter can either be ridden alone or can carry passengers. The basket in front of the scooter can also help carry items. Luyuan, leading the development of core technology of two-wheel electric vehicle and producing products with less trouble and more safety, is committed to providing you with professional electric bicycles and electric scooters!

Company Profile About Us
Core Technology
What is the advantages of Luyuan 6X liquid cooling motor?
Its inner temperature control system can efficiently control the temperature rise inside motor, which can protect motor from burning, demagnetizing, and component failure caused by overheat. By injecting the cooling liquid, inside motor temperature can drop by 30ºC. It has patented waterproof design with internal air exchange system, which can prevent water entering into motor, thus decreasing the rate of components rusting and short circuit and increasing the motor life cycle. Its motor efficiency can reach 90% and water-proof level is IP67.
Other product
Company DetailsCompany Base
Certificate
Customer&Feedback
Service:Delivery

FAQ
Q1: What kind of service can be provide when become a dealer?
A1: Sales rebate, exhibition support, retailer store support, online/offline training, please ask the sales to get more details.
Q2: Why the new scooters/bikes has some dust and slight traces of use?
A2: Our products need to ride the test function before leaving the factory, clean and clear the number of kilometers before packaging and shipping, to ensure that each car is in line with the quality standards of Luyuan, thus you will find some dust and slight traces.
Q3: Does low ambient temperature affect use?
A3: Low temperature will lead to the reduced endurance and power, for example, the temperature is 25ºC when the battery power output is 100%, when the temperature is 0ºC, the battery continuous discharge power is only about 80% of 25ºC, riding in a low temperature environment, it is recommended to slow down, do not accelerate, speeding, and pay attention to the change of the remaining mileage.
Q4: How to deal with vehicle failure?
A4: Please consult your dealer or sales to help you.
Q5: How to maintain the battery when the vehicle is not used for a period of time?
A5: The vehicle is placed for a long time without use, which can easily lead to over-discharge of the battery. It is recommended that the battery be fully charged for storage after each use. If it is not used for a long time, it needs to be charged once a month, which is conducive to extending the battery life.
Q6: Whether the battery/charger can be disassembled without permission?
A6: The battery/charger can not be disassembled without permission, and the warranty service will be lost after disassembly.

---
