Product Details
Product Description
Product Description
Basic Info.
Slot Type
CTS
Customized
Available
Condition
New
Warranty
12 Months Free Warranty, Free Repair.
After-sales Service
Lifetime Technical Support
Transport Package
Container or in Bulk
Specification
2500m3/h
Trademark
HENGPENG
Origin
Shandong, China
HS Code
89051000
Production Capacity
200sets/Year
Product Description
1. Introduction
The HENGPENG High Efficiency 18 Inch Bucket-Wheel Suction Dredger is designed for effective dredging in inland waterways, ditches, and reservoirs. With over 30 years of experience in designing and manufacturing dredgers, HENGPENG has successfully exported its equipment to more than 37 countries. Known for its reliability and advanced technology, this dredger is ideal for operations requiring high efficiency and large output.
2. Features
Full Hydraulic Control: The dredger features a full hydraulic control system, ensuring smooth and efficient operation. The system is centralized and PLC-controlled for ease of use.
Modular Design: The dredger is designed with a modular approach, allowing for easy disassembly and reassembly, which simplifies transportation and maintenance.
High Efficiency: Equipped with a powerful Cumins engine, the dredger offers high efficiency, large output, and low fuel consumption.
Advanced Components: Includes auto lubrication for the cutter, a metal floating ring seal for independent positioning, and Western brand parts for reliability.
Flexible Application: Suitable for a wide range of applications, including dredging, pumping, and material handling.
3. Specification
* Note: All Technical Specifications can be Customized based on your actual dredging needs and working conditions.
| Total Length | 29.0m |
|
| Hull size (L*B*H) | 19.0*7.5*2.0m |
|
| Main pontoon (L*B*H) | 13.8*3.5*2.0m |
|
| Side pontoon (L*B*H) | 19.0*2.0*2.0m |
|
| Main engine brand & power | Cumins/550kw |
|
| Max. dredging depth | 13m |
|
| Water flow | 2500m³/h |
|
| Dry Sand Capacity | 500m³/h |
|
| Discharge distance | 1500m |
|
| Draught | 1.4m |
|
4. Application Scenarios
Inland Waterway Dredging: Ideal for maintaining navigable waterways and improving water flow.
Ditch Dredging: Efficient for clearing and deepening ditches.
Reservoir Dredging: Suitable for removing sediments from reservoirs to enhance capacity and water quality.
Sand Mining: Effective for extracting sand from riverbeds and other locations.
5. Hull Decomposition
Main Hull: The central component of the dredger, providing structural support and housing major systems.
Main Pontoon: Provides buoyancy and stability, designed for durability and ease of maintenance.
Side Pontoon: Supports the main pontoon, adding additional buoyancy and stability.
Front Ramp: Facilitates loading and unloading of equipment and materials.

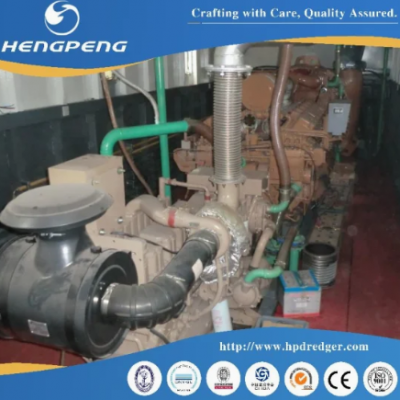

Engine and Hydraulic System: Includes a Europe engine and hydraulic components from Rexroth and Vickers, providing powerful and reliable performance.
6. After-Sales Service
Lifetime Technical Support: Continuous support from our technical team.
Maintenance Service: Regular inspections and maintenance to ensure optimal performance.
Accessory Replacement: High-quality replacements for original components as needed.
Technical Assistance: Expert answers to technical questions and issues.
Training: Customized training services for operating and maintaining the dredger.
7. Certifications
CCS: China Classification Society
BV: Bureau Veritas
ISO9001: International Quality Management Standard
ZC: (Additional Certification)
DNV: DNV GL
8. Why Choose HengPeng
High Quality: Manufactured using CCS marine steel and advanced technology.
Reliable Performance: Equipped with a new highly effective drive system and reliable electrical components.
Customization: Ability to tailor the dredger to specific needs and working conditions.
Fast Delivery: Standard designs delivered within 10-15 days.
Comprehensive Support: Lifetime technical support, maintenance, and training services.
>>
