Recycle PE Coated Disposable Paper Cup Machinery

Product Description

A. CHARACTERISTIC

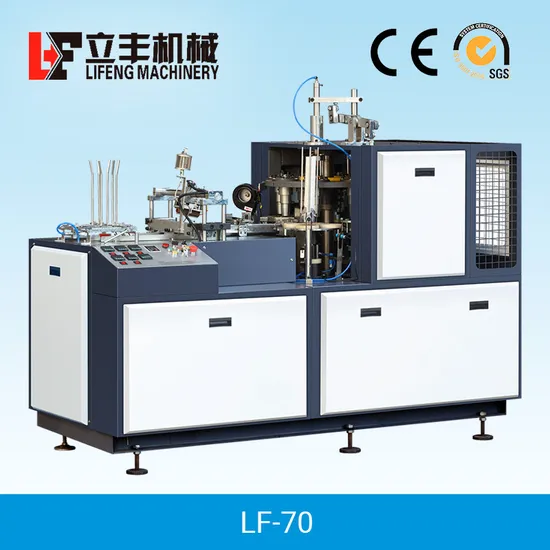

LF-70 middle speed paper cup machine is a multi-station high speed automatic machine, through automatic paper feeding, imported heater side seal, cup top lubrication, automatic bottom paper feeding, bottom heater, bottom knurling and curling, it can make cups both single PE and double PE, for cold drinks and hot drinks.



B. MAIN TECHNICAL SPECIFICATION
ZBJ-NZZ paper cup machine/price of juice paper cup making machine

paper request	150-350gsm(single pe)
voltage supply	220v50hz/380v50hz or customized
cup size	1.5oz-12oz
speed	65-75pcs/min
paper cup top diameter	min 38mm-max 94mm
paper cup bottom diameter	min 30mm-max 75mm
paper cup height	min 30mm-max 111mm
general power	5kw
weight	2000kgs
measurement	2350x1250x1700mm

C.Machine Show

1. Machine internal structure optimization, make the structure more closely, machine smaller in size, easy to transport
2. Core part uses the Geneva wheel drive, ban old-fashioned dividing box transmission, makes driving more accurate, faster, more reliable stability


3. Parts adopt standardization production; Equipment base as a whole by large nc machine installed precision positioning hole, the level of sex, make the parts of the equipment installation more standardized, good versatility and interchangeability, easy to maintenance
4. Simplifying the paper feeding process, the machine runs more reasonably and efficiently.


D.AFTER SALE-SERVICE

ZBJ-NZZ paper cup machine/price of juice paper cup making machine
E.packing details h
ZBJ-NZZ paper cup machine/price of juice paper cup making machine
our machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine,and change mold,

Our Services F.AFTER SERVICE
1. warranty:1 year
2.the guide booklet will be sent with machine to guide the installation process works,adjust the whole machine
3.we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding installation,
ajustment for a period
5.we supply the free training of buyer
6.we supply the consumable spare parts for free for one year use.
Company Information J.FACTORY VIEW
ZBJ-NZZ paper cup machine/price of juice paper cup making machine
our factory has 19years experience,can provide you good and stable quality machine and good after service,also provide you strong techinal support,help you handle machine running.



FAQ
Q1.are you factory or trading company?
we are machinery factory and has 16 years experience.
Q2.where is your factory and how to get there?
our factory location is 7# yongding road,songjiadai industrial park,feiyun town,ruian city,zhejiang province.china
you can by plane from your country to wenzhou city airport,then we will pick you upby car.
Q3.what certification do you have?
we have CE,BV and SGS certification.
Q4.what is your delivery time?
our mahcine need 25 -30 days in normal,if your order is urgent,we can descuss aout that.
Q5,our machine feature:
1.One year guarantee for whole machine except of the easy-wear part.
2.24 hours technical support by email
3.Use- friendly English software, user manual and detailed Video /CD

Q6,when the machine have problem,how you fix it?
Basially , the machine is easy to operate, the engineer can teach the client how to fix the machine by video or email.And the engineer are available to overseas. Q7,what is your payment terms?
30%for deposit and 70% before shippment,

we also have middle speed paper cup machine,high speed paper cup machine,paper cup handle machine,paper bowl machine,paper cup die cutting machine,paper cup printing machine,paper plate machine etc.can provide you a full paper cup production line,welcome for asking more details!
If you are interested,
pls do not hesitate to contact me!
contact person: Joy liang

---
