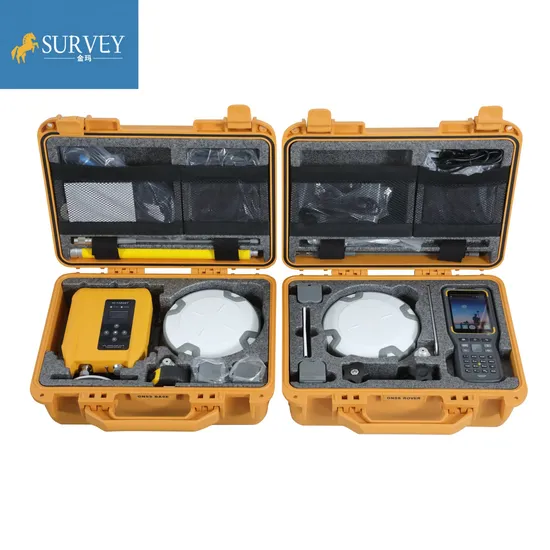

High Quality Hi-Target V90 GPS Rtk

Product Description

Product Description China hot sales high performance Hi-target V90 GNSS RTK
Key Features :• Smart Application
1.Offers tilt survey with a maximum tilt angle of 30 degrees.
2.Supports electronic bubble calibration.
3.Intelligent voice assistance guides field operations. Voice can be DIY.
4.Standard Rinex data and HI-TARGET raw data recorded simultaneously.
• Multi-constellation Tracking
1.220 tracking channels
2.NGS approved full-band GNSS antenna
3.Supports GPS, GLONASS, GALILEO, BDS, SBAS
4.Supports a wide range of satellite signals
5.Alarge rceiving a rea designed for multipath mitigation
6.Air dielectric is light and stable Detailed Photos

Product Parameters SPECIFICATIONS

Statellite Signals Tracked Simultaneously
Channel	220 Channels
GPS	Simultaneous L1C/A, L2C, L2E, L5
GLONASS	Simultaneous L1C/A, L1P, L2C/A, (GLONASS M only), L2P
SBAS	Simultaneous L1C/A, L5
Galileo	Simultaneous L1 BOC, E5A, E5B, E5AltBOC1
BDS	B1, B2
QZSS	L1C/A, L1 SAIF, L2C, L5
POSITIONING PERFORMANCE2
Horizontal	2.5mm+0.5ppm RMS
Vertical	5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying
Horizontal	1mm+1ppm RMS
Vertical	2.5mm+1ppm RMS
Initialization time	Typically 10 minutes for base while 5 minutes for rover
Initialization reliability	typically > 99.9%
Code Differential GNSS Positionnig
Horizontal	25cm+1ppm RMS
Vertical	50cm+1ppm RMS
SBAS	0.50m Horizontal, 0.85m Vertical
COMMUNICATION
Network Communication
Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
Wifi frequency is 2.4G, supports 802.11b/g/n protocol
Network RTK (via CORS) range20-50km
HI-TARGET Internal UHF Radio(Standard)
Frequency	450~470MHz with 116 channels
Transmitting power	1W, 2W, 5W adjustable
Transmitting speed	9.6Kbps, 19.2Kbps
Working range	5km typical, 8~10kmoptimal
HI-TARGET External UHF Radio(Standard)
Frequency	460MHZ with 116 channels
Transmitting power	5W,10W,20W,30W adjustable
Transmitting speed	Up to 19.2Kbps
Working range	8~10km typical,15~20km optimal
HARDWARE
Physical
Dimensions(W×H)	153mm×83mm(6.02inch×3.27inch)
Weight	950g(2.09(b)without internal battery
Operating temperature	-40ºC to+65ºC(-40ºF to+149ºF)
Storage temperature	-55ºC to+85ºC(-67ºF to+185ºF)
Humidity	100%,considering
Water/dustproof	IP67 dustproof,protected from temporary immersion to depth of 1m(3.28ft)
Shock and vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete
Electrical
Power 6V to 28V DC external power input
Power consumption≤3.5W
Automatic switching between internal power and external power
Rechargeable,removable 7.4V,5000mAh Lithium-ion battery in internal battery compartment
Internal Battery Life
Static more than 10 hours
RTK rover (UHF/GPRS/3G)6-10 hours
RTK base more than 6 hours
I/O Interface
Bluetooth, NFC	×1
standard USB2.0port	×1
TNC antenna connector	×1
RS232 serial port	×1
DC power input (5-pin)	×1
MicroSD card port	×1
Data storage	16GB internal storage+Internal Micro SD Card memory (Support up to 32GB extension)
Record GNS and Rinex format simultaneously

Company Profile
Our company to provide professional surveying instruments and surveying service, and with rich experience in export trade, We have many customers abroad.Because of its high cost performance, it is deeply loved by customers all over the world, especially in African countries, Southeast Asian countries, South American countries and Oceanian countries. We have many customers in Tanzania, Uganda, Zambia, Cote d'Ivoire, Cameroon, Zimbabwe, Congo, India, Singapore, Pakistan, Mongolia Brazil, etc.Our company mainly sales of Total station, Auto/digital level, Optical /electronic theodolite, GNSS RTK, Laser distance meter, Handheld GPS, Drone, Surveying accessories, Surveying software, etc. We have good price with Trimble, Leica, Hi-target, South, Kolida, Sanding, Ruide, Chc, Stonex, Foif, Tersus, sokkia, spectra, nikon, Topcon, etc. And we keep good cooperation with surveying accessory manufacturer.The Company's employees graduated from engineering, surveying professional institutions of higher learning, with professional knowledge, is a high-quality sales and service team to provide you with excellent quality instrument service and efficient surveying solutions.Our goal: Be a best and professional export supplier of surveying instruments.
Packing
Contact us Payment support:
Delivery & Transport
FAQ 1. how long we guarantee quality?
Our main products like Auto level, Theodolite, Total Station,Gnss rtk have one year warranty, And we sure the products will be free from maintenance within warranty period If it is not man-made damage,and accessories with 6 month warranty2.what can you buy from us?Auto/digital level, Theodolite, Total Station,Gnss rtk,Laser level,Laser distance meter, drone ,3D scanner, Echo sounder and surveying accessories like tripods,ranging pole,prism,bipod .etc3.what repair service can we provide if products got problem?For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;For big issues in one year warranty like EDX board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. For big issues out of one year warranty, the customer should be responsible for all the cost. 4,what payment term we support?TT, Paypal, Western union,L/C,Pay in cash5, How will we prepare before shipment?All products will have been strictly quality checked in factory before sending out.Usually, we will send out the products within 3-5 working days after the payment confirmed and the buyer are responsible for the tax and/or duty charged by their country.

---
