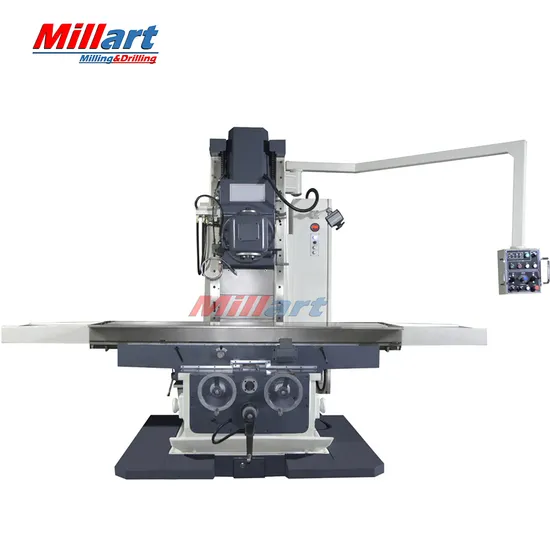

Heavy Duty Swivel Head Milling Machine X715 for Sale

Product Description

Heavy Duty Swivel Head Milling Machine X715 For Sale
Feature:
An extremely rigid, large-sized box-column design, made of premium cast-iron
Extra wide guideways ensure maximum stability and precision at high loads
Extra long table travel distance (1500 mm) and large table set-up area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition
Wide spindle speed range from 40 to 1600 rpm
Infinitely variable linear and cross feed
Control panel on a long extending arm that can be ideally positioned by the operator
This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale from 90º to 45º. This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
Includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bed-type milling machine design for machining with long cutter arbors.
Technical parameter:

Model	unit	X715
Table size	mm	2100x500
T slot	no	4
Size ( Width )	mm	20
Centre distance	mm	100
Max. load of Table	kg	2000
Longitudinal travel	mm	1500
Cross travel	mm	670
Vertical travel	mm	670
Spindle taper		ISO50 7:24
spindle speed /step	rpm	35-1345/12
distance from spindle axis to column surface	mm	610
distance from spindle nose to table surface	mm	0-670
Longitudinal/cross feed	mm / min	20-1800/stepless
Vertical		10-900/stepless
Longitudinal/cross rapid speed	mm / min	3500
Rapid Traverse vertical		1750
main motor	kw	7.5
feed motor	kw	2
coolant motor	w	550
package dimension	cm	228x228x282
overall dimension	cm	330x238x275
machine weight	kg	7300

Standard accessories:
Draw bar
ISO50 Milling chuck
ISO50 Shell end milling arbor
7:24 taper sleeve
Foundation bolts
Inner hexagon spanner
Double head wrench
Optional accessories:
3 axis DRO
Universal dividing head
Rotary table
58 pcs Clamping kits
Machine vice
