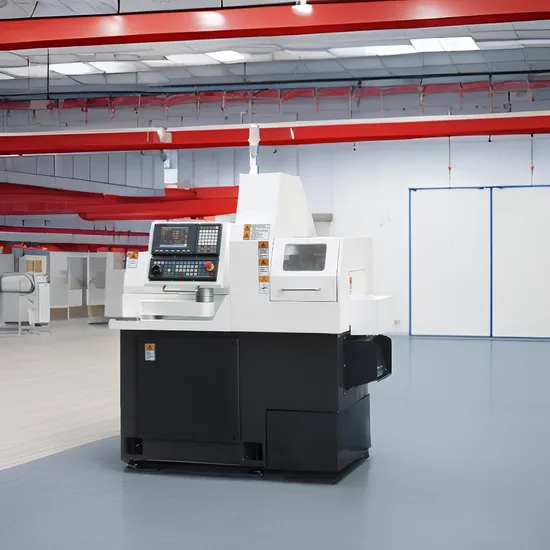

Swiss Design Automatic CNC Turning Equipment (BL-CSL123/203)

Product Description

Swiss Type Automatical Lathe (BL-CSL123/203)
- Single spindle,total 3 axes - Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand - Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity - Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm - Adopt TAIWAN HIWIN brand high precision ball screw and linear guideway - Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes - After mount automatic bar feeder, can realize automatic machining - Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:

Item		Unit	BL-CSL123	BL-CSL203
Max. machineable bar dia.		mm	Φ12	Φ20(opt.:25)
Main spindle bore		mm	Φ16	Φ25(opt.:27)
Max. machineable length	Fixed guide bushing	mm	140(one time feed)	200
	Rotary guide bushing	mm	50(opt.)	180(one time feed)(opt.)
	Guide bushless	mm	N/A	50
Max. face drilling dia.		mm	Φ7	Φ10
Max. face tapping dia.		mm	M6	M8
Main spindle max. speed		rpm	6000	8000
Main spindle motor		kw	2.2	4.2
Main spindle index		/	C axes(continuation)
Rapid moving speed(X/Y/Z)		m/min	20/24/24
Spindle flopping		mm	≤0.002
Repeat positioning accuracy		mm	≤0.003
O.D. tool		mm	5 position 10*10	5 positon 12*12
Axial drilling tool(fixed type)		/	4 position ER11	5 position ER16
Radial type live tool		/	3 position ER11(opt.)	2 position ER11+2 position ER16
Max. radial drilling dia.		mm	Φ6(opt.)	Φ8
Radial type live tool speed		rpm	5000(opt.)	5000
Coolant pump		kw	0.22
Overall size		mm	1510×1000×1660	1600×1250×1760
N.W.		kg	1300	2100

Main parts list:

Item	Brand
CNC controller	TAIWAN-SYNTEC
Servo electro-spindle	TAIWAN
Servo motor&driver	TAIWAN-SYNTEC
Spindle encoder	TAIWAN-SYNTEC
Spindle bearing	JAPAN-NSK P4 class
Ball screw bearing	JAPAN-NSK
Ball screw	TAIWAN-HIWIN
Linear guideway	TAIWAN-HIWIN
Lubrication system	JAPAN-HERG
Main electricity parts	FRANCE-SCHNEIDER
Pneumatic parts	TAWAN-AIRTAC
Lock nuts	TAIWAN-YINSH
Shaft coupling	GERMANY-KTR

Standard configuration: - SYNTEC 22TB CNC controller
- Single spindle
- Parts catcher(without convey belt) Optional configuration: - High pressure coolant system - Oil mist collection system - Automatic chip conveyor - Automatic bar feeder Other models choice:
