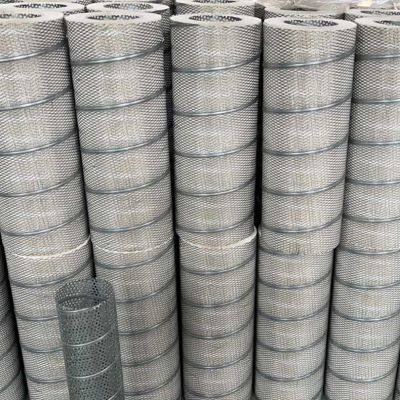

GT Air Intake Filter

Product Description

Model No.	YTGLT-F7 S series
Size Top Circular Cap (OD) Top Circular Cap’s down cut OD Top Circular Cap’s down cut Depth Top Circular Cap’s Nut Hole Filter Outer Dia Filter Inner Dia Filter Overall Length Gasket OD Gasket ID Gasket Thickness Gasket Cross Section	234.2 mm 120 mm 60 mm ø 16 mm 235 mm 120 mm 600 ± 2 mm 224 mm 204 mm 10 mm 10mm x 10mm (Rectangle)
Categories of Filter	Air intake silencing equipment of complex air intake
Filter Efficiency	97%
Air Intake Flow	18 Kg/s
Air Intake Temperature	5-450C Average 350C
Filter Level	≤ 1 mg/m
Pressure Drop	initial ≤ 20 Pa final ≤ 30 Pa
Filter Material	Compound water-proof material (Paper Type)
Frame Material	Q235 steel
No of Pleats	Min. 219
Net weight	4.65 Kg/each
Gross weight	5.20 Kg/each
Package	Individual

More Sizes Available:
325 x 215 x 600mm / 660mm / 800mm / 864mm / 1000mm 1320mm
350 x 245 x 600mm / 660mm / 900mm
Customized service preferred. Max. length upto 2000mm.
Filter Media:
Hollingsworth & Vose (USA), TORAY brand (Japan), Top brand of China
Application
Air intake filtering system of gas turbines, air compressor, dust collector, sandblasting, mining industry, oxygen generation station, cigarettes factories, etc.
Packing and Shipping
