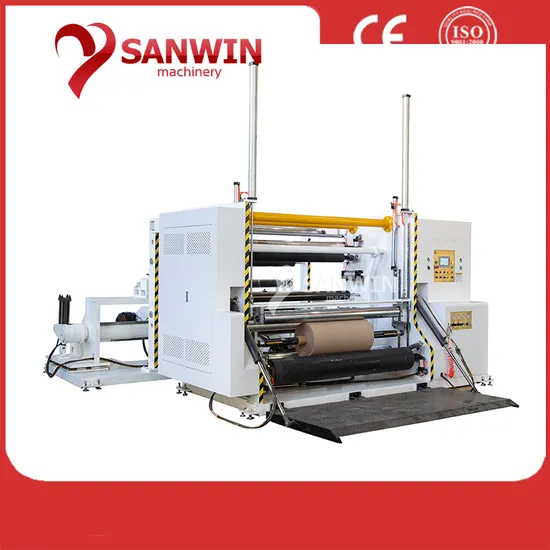

High Speed Automatic Jumbo Roll Self Adhesive Paper Slitting Machine

Product Description

Automatic High Speed Jumbo Roll Paper Slitting Machine
Application
This type automatic slitting machine is suitable for slitting wide roll BOPP,PET, Non woven fabric ,Paper etc .according to production let roll material slitting, scrap waste side. The structure of the complete machine is compact, fast with high efficiency, easy and stead operation
Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ .
2. Independent master control screen, more flexible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.
Main Technical Parameter

Unwind Width	1600mm
Unwind Diameter	φ1000mm
Rewind Diameter	φ1000mm
Working Speed	0-300meters/min
Mini Slitting Width	50mm
Speed regulation	By Inverter(5.5kw)
Material Loading Device	Airshaftφ3inch
Loading Type	Pneumatic
Rewinding Type(2 PCS)	Air Inflation Shaft
Power Supply	380V/3Phase/50Hz
Measurement	3000*1700*1550mm
Weight	3200kgs
Total Power	8kw
Inverter	5.5KW
Main Motor	5.5
PLC CONTROL	Simens
Touch Screen	China

1.Unwinding unit (Auto load material )
2.Cutting Knives
3.Rewinding Part
4.Touch Screen +PLC

---
