PE PP HDPE Bottle Washing Recycling Line

Product Description

Plastic PP PE PET bottle recycling machine

Plastic pet bottle recycling machine is mainly used to recycle the waste PET bottles, water bottles, cola bottles and so on.
It adopts hot water washing to get good quality. Various output capacities can be chosen: 300KG/H, 500-600kg/h, 1000kg/h, 1500kg/h
and 2000kg/h...
The recycling line can easily crush, wash and pelletize wasted plastic products From beginning to finished products. Waste and
dirty agricultural films and Waste packing material or rigid plastics can be treated step by step by this machine
• plastic pet bottle recycling machine includes: conveyor belt, label remover(dry type or water type), sorting system,metal detecting system, plastic granulator or crusher, sink-float washing tank, hot washing system, frication washer, dewatering machine, thermal dryer, label/dust/fin separator and packing system.
• plastic pet bottle recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.
• All your requirements of pet bottle recycling machine can be customized.
Flowchart:
Conveyor belt →Label remover machine → Sorting table→Conveyor belt → Crusher → Screw loader→ Float washing tank→ Friction washing machine → Screw loader→Hot washer tank → High-speed friction washing machine → Floating washing tank → Dewatering machine → hot air dryer system → zig zag air classifier system → Silo
Machines line lists and fuctions:

SN:	Item name:	Function
1	Bale Opener machine	Feeding the material equally
2	Conveyor	Feeding material
3	Trommel separator	Remove the sand, rocks and other dirty from the bottles
4	Conveyor	Feeding material
5	Label Remover	Remove labels from Bottles
6	Manual sorting table	Sorting out remain labels, remain different bottles and so on
7	Crusher	Crushing the bottles into flakes
8	Screw Conveyor	Conveying material
9	1st Auto floating washing tank	Washing out the Floating caps, rings and dirty
10	1st High Speed Friction washer	With high speed Friction Washing out dirty
11	Hot washing tank	With Hot water washing and chemical to remove glue, oil, and dirty
12	Screw Conveyor	Conveying material
13	2nd High Speed Friction washer	With high speed Friction Washing out dirty and Chemical water from flakes
14	2nd Auto floating washing tank	Washing out chemicals, floating caps, rings and dirty,
15	3rd Auto floating washing tank	Washing out floating caps, rings and dirty,
16	Horizontal Dewatering Machine	Remove the humidity from the flakes
17	Hot Air Drying system	Drying the flakes
18	Zig-Zag Air Classifier	Remove the fin dust and small labels
19	Automatic packing system	Collecting the flakes
20	Electrial contol panel	Used to control the whole Line
21	Free spare parts
PET bottle washing/recycling machine/line/plant can be customized according to your requests.

Features:
• Labor saving. The bale opening and feeding system we provide will equally feed the material.
• You can use the manually sorting system to selecting out different color bottles and non-PET material
• Metal detector is optional for you which used to take out any kind of metal from the PET bottles
• Specially designed PET bottle granulator can easily get high output and with water doing wet griding can
reduce wear of blades.
• High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
• The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content.
Application:
• plastic pet bottle recycling machinet is specially designed to produce fiber use PET flakes.
• The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.
• plastic pet bottle recycling machine can adopt the PLC automatic control of the full line to control the final products quality and save energy.
• plastic pet bottle recycling machine can be equipped with the Europe automatic material sorting system and color sorting system.
• plastic pet bottle recycling machine can be customized according to the raw material and customer requirement.

Technical Parameters

Technical Parameter	Specifications
Flakes size	10-12mm
Moisture content	≈1%
PVC content	Less than 150 ppm
PH	7.5 +/- 0.5
Bulk density	250-400 kg/m³
Intrinsic Viscosity	> 0.70
Non-PET	Less than 150 ppm
Color	Less than 200 ppm
Suitable to be used for	Polyester/ PET strapping Polyester Fiber/ PSF

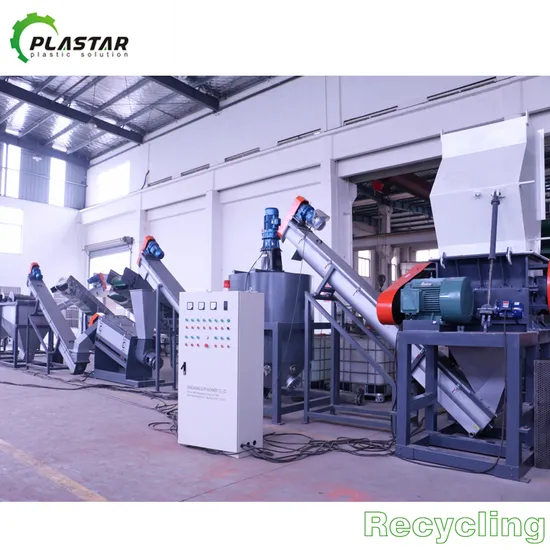

Machine pictures for reference:
Customer Visiting:
Package&shipping:
Please don't heistate to contact with us if you have any questions about our machines.

---
