Cast Film Machine Stretch Film Making Machine Cling Film Machine

Product Description

Company Profile

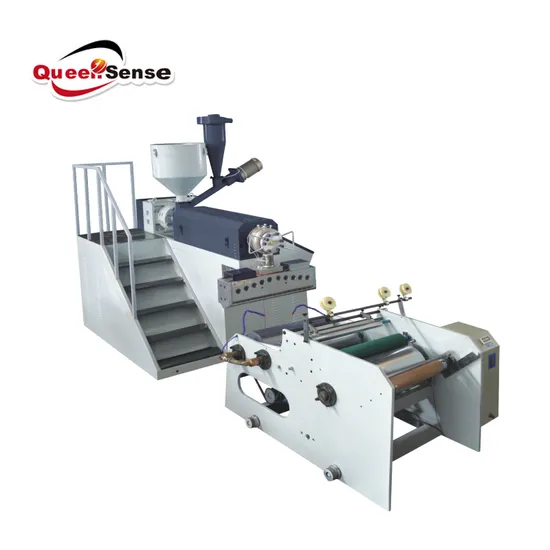

DF-1000 Single/Double-layer Co-extrusion Stretch Film Machine
use:
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength,anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It's a good substitute for hot shrinking packaging film during transportation.
Product Parameters

Item/Model	1250mmDouble-layer	1250mmSingle-layer
Screw diameter(mm)	65	75
L/D ratio of screw (L/D)	28:1	28:1
width of die head (mm)	1250	1250
Width of finished products(mm)	1000(500*2)	1000(500*2)
Thickness of finished products (mm)	0.017-0.05	0.017-0.05
Structure of film layers	A/B	--
Max output (kg/h)	100	100
Linear speed of machinery (m/min)	50-100	50-100
Total power (KW)	140	120
Overall dimensions (L*W*H)m	10*4*3	11*4.5*3
Weight (T)(About)	8	8

Detailed Photos
Our teams
Work shop

---
