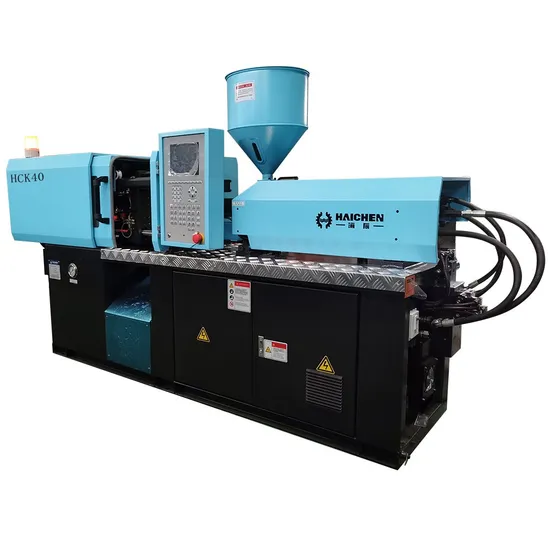

Ningbo Haichen 40-Ton Horizontal Thermoplastic Mini Injection Molding Machine

Product Description

Product Description
Small Injection Molding Machine Haichen Machine is a supplier of small injection molding machines. Haichen produces the same size injection molding machine, with a smaller tei bar distance and lower injection weight.
Haichen mini injection molding machines are mainly used to fill the production space of large-scale injection molding machines, which cannot meet the requirements of small-scale production and small-scale manufacturing in the industrial production field.
Detailed Photos
Due to its miniaturized design concept, small size, high applicability, and no need for too much space, the Haichen mini injection molding machine is very suitable for:
-Small injection molding production at home
-Classroom teaching for the lab uses a small injection molding machine.
-Small sample making by injection molding
-The processing requirements for high-precision and micro shaped products.
Small injection molding machines are mainly used for producing: color cards, small gears…
Product Parameters

INTERNATIONALCLASS NO		HCK40
INJECTION UNIT
		A	B
Screw diameter	mm	27	30
Screw L/D ratio	L/D	20.7	18.7
Shot volume(theoretical)	cm3	52	64
Injection weight(ps)	g	47	58
Injection pressure	Mpa	207.5	168
Injection rate	g/s	40	50
Screw speed(Max.)	r/min	200
CLAMPING UNIT
Clamping force	kN	400
Space between tie bars(W×H)	mm	260×240
Opening stroke	mm	240
Min.Mold height	mm	100
Max.Mold height	mm	300
Ejector stroke	mm	60
Ejector force	kN	25
OTHERS
Max.Pump pressure	Mpa	14
Pump motor power	Kw	4
Heating power	Kw	3
Machine dimension(L×W×H)	m	2.94×1.1×1.65
Machine weight	t	1.8

	Tonnage - US Standard (US Tons)	Tie Bar Distance	Shot weight(PS)	Max-Min Mold height
HCK30	30	240*210 MM	28.2/33.6 G	195-60 mm
HCK40	40	260*240 MM	47/58 G	300-100 mm
HCK50	50	280*280 MM	67.5/80 G	340-120 mm
HCK70	70	330*330 MM	102/115.6/129.7 G	360-130 mm
HCK80	80	370*370 MM	112/126/140 G	360-150 mm

Company Profile
Haichen Machine is a global manufacturer of high precision plastic injection molding machines. We are not just an injection molding machine manufacturer, also supply the solution for plastic production.
Our headquarters, centrally located in Ningbo and is an injection molding machine production factory that integrates production, sales, and after-sales service. Haichen machine is fully equipped to support sales, service, mold trials, customer training, maintenance… Our service teams are staffed with experienced, professional service technicians who are fully committed to supporting the success and profitability of our customers.
Haichen injection molding machine, ranging from 30 tons to 3000 tons, with more than 20 years of experience. Haichen machine generally stocks over 100 injection molding machines for quickly delivery.

Our Advantages
Packaging & Shipping
FAQ
Q: What is mini injection molding machine?
A: -Very small clamping force injection molding machine
-For small plastic parts: manufacture injection molding machine
-Fast, stable and precise injection molding machine
-Special advantages in the field of research and the production of high-precision products.
Q: The Advantages of the All-electric e-mac, the Small Injection Moulding Machine
A: There are many advantages to using all-electric e-mac, the small injection moulding machine including:
-Higher productivity
-Cost-effective and low cost
-Low space requirement
-Machines are easy to clean and maintain
Q: How much does it cost to make a small injection mold?
A: Between $400 and $1,000
The price of the smallest injection mold can be very low. For example, the price of some simple injection molds can even be as low as 2800 yuan. In addition, the price of some small injection molds is also around 6800 yuan. These prices indicate that even smaller injection molds can be very affordable.
Q:Why choose our plastic injection molding machine?
A:1.High quality with compertitive price
2.15years export experience
3.CE.10S Certificates
4.24 HOURS ONLINE SERVICE
5.Oversea engineers available for problem resolving

---
