Product Description
Product Description

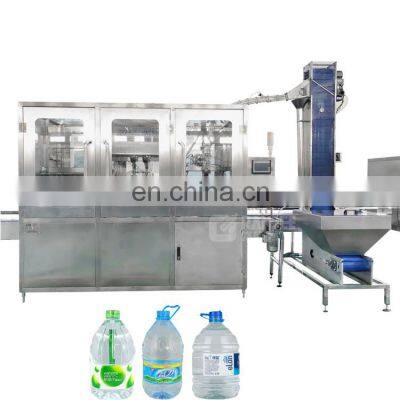

5L mineral water filling machine / pure water bottling machine / production line Product DescriptionMachine description:1.3-10L water filling machine also can be adjusted and desighed according to different bottles' specification and appearance, 100/200/300/500/600/800 bottles/hour production line automatically. 2.This linear type automatic washing filling capping machine is suitable for all kinds of 3-10L bottle shapes (including the irregular-shape bottles). According to customer requirements, this machine can fill : such as: white wine, soy sauce,vinegar, spices, vegetable oil,syrup, water and other liquid food products and pesticides and chemical industry, various types of liquid products. 3.This machine adopts computer (PLC) control, with high efficiency, precision measurement characteristics and is ideal packing machine for food, medicines, chemical products. Main machine show: DetailsWashing Part:The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling Part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Conveyor System Our driven motor with very strong power and is very different with normal motor.Our flat top chain plate is very thick with 4.0mm thickness PLC touch screenBrand: Siemens Man-machine Interface Main technical parameter:ModelCGF2-2-1CGF4-4-1CGF8-8-3CGF10-10-4Capacity(5L B/H)2005008001200Filling volume(L)3-103-103-103-10Rising heads24810Filling heads24810Capping heads1134Power(KW)1.22.54.55.5Dimension(mm)2200*1500*24002800*1100*18003500*1100*18004200*1100*1800Weight(KG) 750100013001600 Machine configuration Pneumatic element AIRTAC, Taiwan Pump CNP, China Sensor Switch AUTONICS, Korea AC ContactorsSchneider, GERMANY Electrical Creapage Switch Schneider, GERMANY Breaker Schneider, GERMANY PLC controlSiemens/ Mitsubishi/ WEINVIEWRelated productRO System: Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.Blow Molding Machine: 1. Semiautomatic Blowing Machine for 500BPH-2000bph from 3-10L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 5000ml bottle. Automatic self adhesive labeling machine Instructions: it can independent work or connect to the conveyorBottle type: glass bottle, plastic bottle and so on, circle, square figure or taperAlarm function: There is no colorful belt warning label, lack of label, and broken label warmingBottle diameter: 10-120mm Height: 25-400mmL type PE film shrink packing machine Pang Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationOur exhibitionProject cases FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare paRts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
